Hydro-Pac Li'l CRITTER High-Pressure Pump
Hydro-Pac Li'l CRITTER High-Pressure Pump
SKU:ACT-f8b2eb
Powerful and reliable high-pressure pump for lab and light production. Ideal for bolt tensioning, burst testing, and more.
Regular price
$2,999.99
Regular price
Sale price
$2,999.99
Unit price
per
Initiate Order
Hydro-Pac Li'l CRITTER High-Pressure Pump
$2,999.99
Quantity: 1
Claim Your Seller Account
Hydro-Pac Li'l CRITTER High-Pressure Pump
$2,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience the power and reliability of the Hydro-Pac Li'l CRITTER High-Pressure Pump designed for laboratory and light production applications. With a motor power of 5 hp and pressure up to 100,000 psi, this compact pump features a double-ended intensifier, pressure energized seals, water-cooled hydraulic oil, and more. Ideal for various applications like bolt tensioning, burst testing, and calibration of instruments. Complete with high-pressure intensifier, hydraulic power unit, electric motor, and more, this pump ensures efficiency and performance.
Product Specifications
Key Features Benefits And Advantages 0
One Piece Body and Disc in PVC, CPVC and GFPP MaterialsRevolutionary Hand Lever with 19 Lockable Stop Positions and 360° InterlockExternal Disc Position and Flow IndicationHydro-dynamic Centric Disc Design for Increased Flow PerformanceOver-Sized Liner Face Maximizes Surface Contact with FlangesEPDM, Viton® or Nitrile Liners1-Piece 316 Stainless Steel Stem with Threaded Retaining GlandStem Bearing and Seal Retainer for Absolute Stem Positioning and SealingISO 5211 Top Flange and Stem DriveAll Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
Materials 0
PVC per ASTM D1784 Cell Class 12454CPVC per ASTM D1784 Cell Class 23447GFPP per ASTM D4101 Cell Class 85580EPDM, Viton® and Nitrile Liners
Options 0
Over-Molded or Field Mountable 316 Stainless Steel LugsGear OperatorsComplete Range of Pneumatic or Electric ActuatorsStem Extensions2" Square Operating NutChain Operator for Gear Box

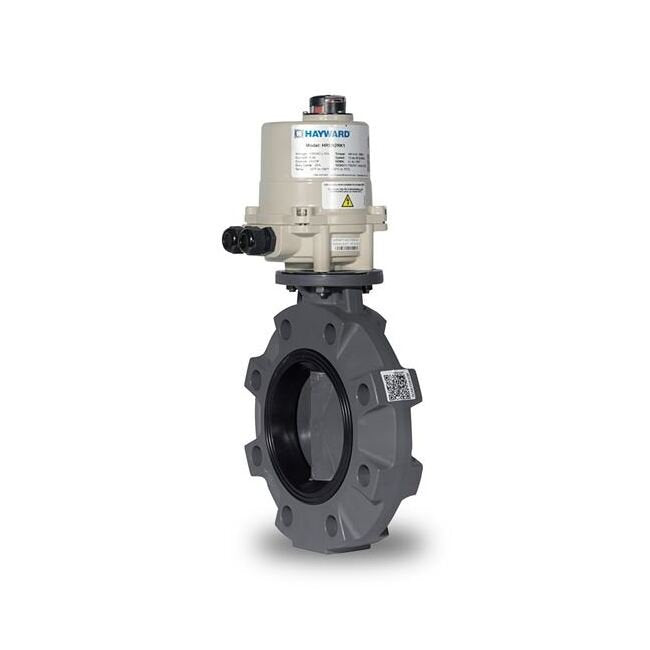

Sample Specifications Actuator 0
All Electric actuators shall feature a high efficiency reversing DC Brush-type Class B motor for 12vac/vdc and 24vac/vdc applications, and a split-phase capacitor thermally protected Class F reversing motor for 120V and 230V applications. Actuators shall be supplied with two primary travel-limiting switches and two standard auxiliary independently adjustable volt-free form A switches rated at 250vac 3A for remote indication of end of travel limits. Actuator positioning shall be via field generated on/off control switching supply voltage feeding the actuator. Actuator gearing shall operate in a permanently lubricated transmission. There shall be no non-metallic gears utilized in the transmission. Enclosure housing shall be grade 383 cast aluminum with tan powder-coating and with type 304SS stainless steel trim. Actuators shall have F05/07 mounting patterns with a 14mm double square female drive socket. Actuators shall provide a bottom-mounted 8mm hex override shaft to allow manual positioning of the actuator upon loss of power. A raised visual position indicator shall provide actuator position information from 360 degrees around the actuator as well as from above the actuator. Actuators shall generate between 310âlbs and 440âlbs continuous torque regardless of supply voltage. The actuator shall be furnished with two (2) ½â EMT polyamide cable glands rated at IP68 protection into the actuator housing. Enclosure shall be rated to NEMA 4/4X/IP67. Operating temperature range shall be from -22°F to +158°F (-30°C to 70°C). Actuators shall be CSA Certified to CSA 22.2 No. 139-10 and listed to UL439 for Ordinary Location Applications. All electric actuators 310âlbs ~ 440âlbs shall be Hayward Flow Control HRSN2 Model and shall carry a Global three (3) year warranty.
Sample Specifications Valve 0
All thermoplastic wafer-style butterfly valves shall be manufactured from PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454), CPVC(ASTM D1784, Cell Classification 23447) or glass filled Polypropylene (ASTM D4101, Cell Classification 85580). All valve bodies shall containintegral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Bodies shall contain fully-supported flange bolt holes,be one piece construction and meet ANSI B16.10 narrow face-to-face dimensions in all sizes. If LUGGED butterfly valves are required, lugsshall be over-molded, 316 stainless steel and be the full width of the body. Liners shall be EPDM, Viton® or Nitrile. Liner shall be FULL BOOTdesign, and shall be retained in the body via rib and groove engagement. Liner shall serve as primary disc seal and face seals for mating flanges.Secondary upper bearing and lower seal retainer o-ring seals to be EPDM or FPM. Stem shall be 316 stainless steel, non-wetted and providefull engagement over length of disc. Stem shall have position retention design.All sizes of butterfly valves (2" through 12") shall be pressure-rated for 150 PSI at 70°F non-shock.All butterfly valves shall carry a three-year warranty, and shall be manufactured by Hayward Flow Control products in the USA.
Specifications Actuator Type
Electric
Specifications Enclosure
NEMA4/4X
Specifications Enclosure Material
Aluminum Dry Powder Coated
Specifications Flow Coefficient Cv
125
Specifications Iso 5211 Flange Drive
F07-D11
Specifications Liner Material
Viton®
Specifications Medium Temperature Range
70 ºF
Specifications Method Of Operation
Actuated
Specifications Operation
On / Off
Specifications Pressure Rating At 70f
10 bar | 150 psi
Specifications Standard Voltage
120VAC
Specifications Valve Body Material
PVC
Specifications Valve Disc Material
PVC
Specifications Valve Size
2"
Applications 0
Water and Wastewater TreatmentAquatic and Animal Life Support SystemsChemical Processing and HandlingMarine and Corrosive EnvironmentsMiningMetal Plating and Surface FinishingLandfills / Environmental InfrastructureWater / Theme Parks
