Hydro-Pac Li'l CRITTER High-Pressure Pump
Hydro-Pac Li'l CRITTER High-Pressure Pump
SKU:ACT-fbed27
Powerful, reliable Hydro-Pac Li'l CRITTER High-Pressure Pump for precise high-pressure applications. Water-cooled, compact design for efficiency.
Regular price
$3,499.99
Regular price
Sale price
$3,499.99
Unit price
per
Initiate Order
Hydro-Pac Li'l CRITTER High-Pressure Pump
$3,499.99
Quantity: 1
Claim Your Seller Account
Hydro-Pac Li'l CRITTER High-Pressure Pump
$3,499.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydro-Pac Li'l CRITTER High-Pressure Pump offers exceptional reliability and extended service life, designed for precision applications in laboratory and light production settings. With a capacity of up to 0.25 gpm and a pressure range from 15,000 psi to 100,000 psi, this compact pump is ideal for tasks like cold isostatic pressing, bolt tensioning, and hydraulic pressure testing. Equipped with a water-cooled hydraulic system, reversible valve seats, and automatic seal adjustment, the Li'l CRITTER pump ensures efficient and safe operations. Complete with high-pressure intensifiers, hydraulic power units, and electric motors, this pump is a versatile solution for high-pressure applications.
Product Specifications
Key Features Benefits And Advantages 0
One Piece Body and Disc in PVC, CPVC and GFPP MaterialsRevolutionary Hand Lever with 19 Lockable Stop Positions and 360° InterlockExternal Disc Position and Flow IndicationHydro-dynamic Centric Disc Design for Increased Flow PerformanceOver-Sized Liner Face Maximizes Surface Contact with FlangesEPDM, Viton® or Nitrile Liners1-Piece 316 Stainless Steel Stem with Threaded Retaining GlandStem Bearing and Seal Retainer for Absolute Stem Positioning and SealingISO 5211 Top Flange and Stem DriveAll Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
Materials 0
PVC per ASTM D1784 Cell Class 12454CPVC per ASTM D1784 Cell Class 23447GFPP per ASTM D4101 Cell Class 85580EPDM, Viton® and Nitrile Liners
Options 0
Over-Molded or Field Mountable 316 Stainless Steel LugsGear OperatorsComplete Range of Pneumatic or Electric ActuatorsStem Extensions2" Square Operating NutChain Operator for Gear Box

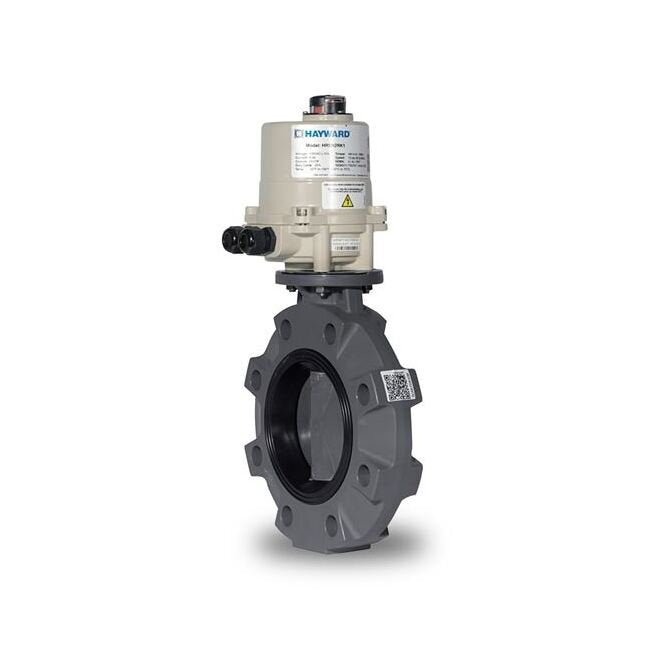

Sample Specifications Actuator 0
All Electric actuators shall feature a high efficiency reversing DC Brush-type Class B motor for 12vac/vdc and 24vac/vdc applications, a split-phase capacitor thermally protected Class F reversing motor for 120V and 230V applications, and Class F thermally protected polyphase motors for 230/3 and 480/3 applications. Actuators shall be supplied with two primary travel-limiting switches and two standard auxiliary independently adjustable volt-free form A switches rated at 250vac 10A for remote indication of end of travel limits. Actuator positioning shall be via field generated on/off control switching supply voltage feeding the actuator. Actuator gearing shall operate in a permanently lubricated transmission. There shall be no non-metallic gears utilized in the transmission. Enclosure housing shall be grade 383 cast aluminum with tan powder-coating and with type 304SS stainless steel trim. Actuators shall have an F07 mounting pattern with a 17mm double square female drive socket. Actuators shall be capable of changing the ISO mounting flange to allow direct mounting to a wide range of bolt patterns. The female drive socket shall be a splined drive type that will accept mating splined inserts allowing different shaft configurations. Female drive socket inserts shall be held in place via internal clip ring to allow easy change of the socket. Actuators shall employ epicyclic geartrain transmissions which are self-locking without any type of brake, and require no declutching mechanism for manual positioning of the actuator regardless of the presence or absence of power. Manual override capability shall be provided via a hand wheel. Maximum rim-pull force to match motor output torque shall not exceed 85lbs. A raised visual position indicator shall provide actuator position information from 360 degrees around the actuator as well as from above the actuator. Externally accessible mechanical stop adjustment screws shall provide manual hand wheel operation protection for the attached valve or damper without the need to have power applied. Actuators shall generate between 880âlbs and 1770âlbs continuous torque regardless of supply voltage. The actuator shall be furnished with two (2) 3/4â polyamide cable glands rated at IP68 protection into the actuator housing. Enclosure shall be rated to NEMA 4/4X/IP67. Operating temperature range shall be from -22°F to +158°F (-30°C to 70°C). Actuators shall be CSA Certified to CSA 22.2 No. 139-10 and listed to UL439 for Ordinary Location Applications. All electric actuators 880âlbs ~ 1770âlbs shall be Hayward Flow Control HRSN3 Model and shall carry a Global three (3) year warranty.
Sample Specifications Valve 0
All thermoplastic wafer-style butterfly valves shall be manufactured from PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454), CPVC(ASTM D1784, Cell Classification 23447) or glass filled Polypropylene (ASTM D4101, Cell Classification 85580). All valve bodies shall containintegral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Bodies shall contain fully-supported flange bolt holes,be one piece construction and meet ANSI B16.10 narrow face-to-face dimensions in all sizes. If LUGGED butterfly valves are required, lugsshall be over-molded, 316 stainless steel and be the full width of the body. Liners shall be EPDM, Viton® or Nitrile. Liner shall be FULL BOOTdesign, and shall be retained in the body via rib and groove engagement. Liner shall serve as primary disc seal and face seals for mating flanges.Secondary upper bearing and lower seal retainer o-ring seals to be EPDM or FPM. Stem shall be 316 stainless steel, non-wetted and providefull engagement over length of disc. Stem shall have position retention design.All sizes of butterfly valves (2" through 12") shall be pressure-rated for 150 PSI at 70°F non-shock.All butterfly valves shall carry a three-year warranty, and shall be manufactured by Hayward Flow Control products in the USA.
Specifications Actuator Type
Electric
Specifications Enclosure
NEMA4/4X
Specifications Enclosure Material
Aluminum Dry Powder Coated
Specifications Flow Coefficient Cv
2500
Specifications Iso 5211 Flange Drive
F10-D17
Specifications Liner Material
Viton®
Specifications Medium Temperature Range
70 ºF
Specifications Method Of Operation
Actuated
Specifications Operation
On / Off
Specifications Pressure Rating At 70f
10 bar | 150 psi
Specifications Standard Voltage
120VAC
Specifications Valve Body Material
PVC
Specifications Valve Disc Material
PVC
Specifications Valve Size
8"
Applications 0
Water and Wastewater TreatmentAquatic and Animal Life Support SystemsChemical Processing and HandlingMarine and Corrosive EnvironmentsMiningMetal Plating and Surface FinishingLandfills / Environmental InfrastructureWater / Theme Parks
