Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor
Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor
SKU:ACT-9a4683
Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor - High compression ratio, 3000 psig discharge pressure, efficient and reliable performance.
Regular price
$13,999.00
Regular price
Sale price
$13,999.00
Unit price
per
Initiate Order
Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor
$13,999.00
Quantity: 1
Claim Your Seller Account
Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor
$13,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Hydro-Pac LX-Series Two-Stage Hydrogen Gas Compressor features a high compression ratio of up to 64:1, ideal for applications requiring optimal gas compression. With a discharge pressure of 3000 psig, this compressor offers a capacity range from 3.4 to 10.6 Nm³/hr, ensuring efficient operation. Built with materials resistant to hydrogen embrittlement, this compressor guarantees safe and reliable performance. Its slow stroke rate promotes cooling during compression, while poppet type check valves and extended spacers enhance operational safety and integrity. Suitable for various fueling strategies, this compressor is adaptable and efficient for institutional and government procurement needs.
Product Specifications
Key Features Benefits And Advantages 0
One Piece Body and Disc in PVC, CPVC and GFPP MaterialsRevolutionary Hand Lever with 19 Lockable Stop Positions and 360° InterlockExternal Disc Position and Flow IndicationHydro-dynamic Centric Disc Design for Increased Flow PerformanceOver-Sized Liner Face Maximizes Surface Contact with FlangesEPDM, Viton® or Nitrile Liners1-Piece 316 Stainless Steel Stem with Threaded Retaining GlandStem Bearing and Seal Retainer for Absolute Stem Positioning and SealingISO 5211 Top Flange and Stem DriveAll Sizes Meet ANSI B16.10 / ISO 5752 Narrow Face-to-Face Dimensions
Materials 0
PVC per ASTM D1784 Cell Class 12454CPVC per ASTM D1784 Cell Class 23447GFPP per ASTM D4101 Cell Class 85580EPDM, Viton® and Nitrile Liners
Options 0
Over-Molded or Field Mountable 316 Stainless Steel LugsGear OperatorsComplete Range of Pneumatic or Electric ActuatorsStem Extensions2" Square Operating NutChain Operator for Gear Box
Sample Specifications Actuator 0

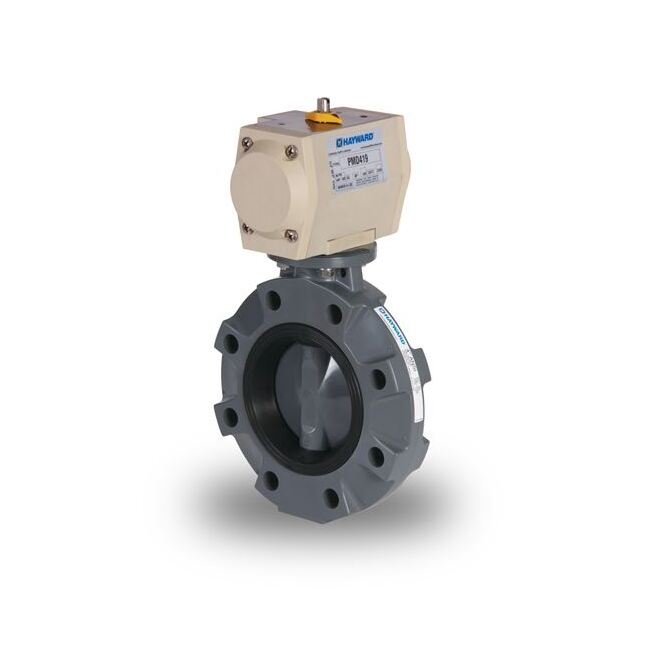

All PMS/PMS4 pneumatic actuators shall be constructed from Polyamide (PMS Series) or glass filled Polypropylene (PMS4 Series). The actuators shall be quarter-turn, single-acting (air-to-spring, failsafe), rack-and-pinion (2-piston) design. The internal o-rings shall be Nitrile, and the output shaft shall be Steel. The standard âfailsafeâ position shall be fail-closed, unless otherwise stated. The actuators shall have manual override capability and a position indicator. The actuators shall be NAMUR-style to accommodate direct mounting of a solenoid (side-mount) and/or position feedback limit switches (top-mount). The bottom of the actuators shall contain an ISO5211 mounting pattern to facilitate universal valve mounting. All external mounting hardware shall be stainless steel. A minimum of 80 PSI shall be provided to these actuators for proper torque performance in the field. A maximum of 120 PSI shall be allowed. For proper actuator sizing (per valve type and size), consult with Hayward Flow Control. All PMS and PMS4 Series actuators shall carry a Global three (3) year warranty, and shall be manufactured by Hayward Flow Control.
Sample Specifications Valve 0
All thermoplastic wafer-style butterfly valves shall be manufactured from PVC Type 1, Grade 1 (ASTM D1784, Cell Classification 12454), CPVC(ASTM D1784, Cell Classification 23447) or glass filled Polypropylene (ASTM D4101, Cell Classification 85580). All valve bodies shall containintegral top mounting flange with dimensions and bolt circles conforming to ISO 5211. Bodies shall contain fully-supported flange bolt holes,be one piece construction and meet ANSI B16.10 narrow face-to-face dimensions in all sizes. If LUGGED butterfly valves are required, lugsshall be over-molded, 316 stainless steel and be the full width of the body. Liners shall be EPDM, Viton® or Nitrile. Liner shall be FULL BOOTdesign, and shall be retained in the body via rib and groove engagement. Liner shall serve as primary disc seal and face seals for mating flanges.Secondary upper bearing and lower seal retainer o-ring seals to be EPDM or FPM. Stem shall be 316 stainless steel, non-wetted and providefull engagement over length of disc. Stem shall have position retention design.All sizes of butterfly valves (2" through 12") shall be pressure-rated for 150 PSI at 70°F non-shock.All butterfly valves shall carry a three-year warranty, and shall be manufactured by Hayward Flow Control products in the USA.
Specifications Actuator Type
Pneumatic
Specifications Enclosure Material
Glass Filled Polypropylene
Specifications Flow Coefficient Cv
125
Specifications Iso 5211 Flange Drive
F07-D11
Specifications Liner Material
EPDM
Specifications Medium Temperature Range
70 ºF
Specifications Method Of Operation
Actuated
Specifications Minmax Air Pressure
80psi / 120psi
Specifications Namur Mounting
Yes
Specifications Operation
Air to Spring Fail Safe Operation
Specifications Pressure Rating At 70f
10 bar | 150 psi
Specifications Valve Body Material
PVC
Specifications Valve Disc Material
PVC
Specifications Valve Size
2"
Applications 0
Water and Wastewater TreatmentAquatic and Animal Life Support SystemsChemical Processing and HandlingMarine and Corrosive EnvironmentsMiningMetal Plating and Surface FinishingLandfills / Environmental InfrastructureWater / Theme Parks
