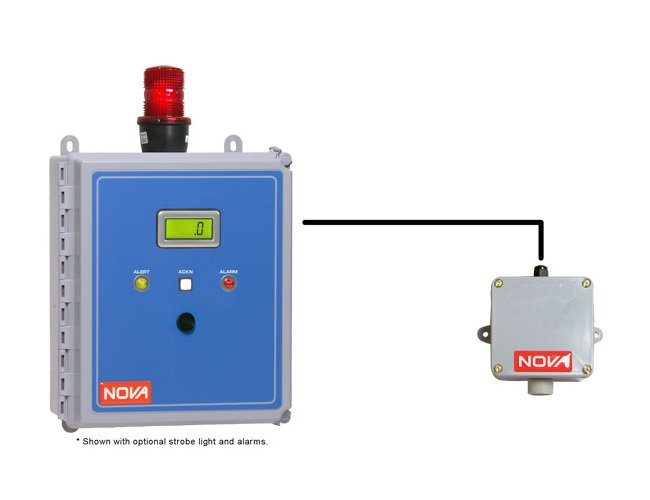

Designed to monitor ambient hydrogen sulfide (H2S) near industrial processes such as biogas & syngas production, landfills, in confined spaces, or any other area where H2S may be present.Model 550DR1 has one remote sensor which is electrically connected to the main cabinet.
Product Specifications
Applications 0
Designed to monitor ambient hydrogen sulfide (H2S) near industrial processes such as biogas & syngas production, landfills, in confined spaces, or any other area where H2S may be present.
Features 0
Standard electrochemical cellFast response to the presence of H2S in the airInstant warm-up, no waitBright digital readout - no reading interpretation errorsEasy use and calibrateEasy to maintain modular layout4-20mA output signal for recordingNEMA 12 fiberglass enclosure is standard
Options 0
'Fail Safe' alarms availableStrobe lightNEMA 4 or 4X enclosuresCold weather package for operation to -5°F (-20°C)
Specifications Accuracy Repeatability
±1% of full scale or 2 PPM, which ever is higher
Specifications Alarms
Optional: Audible alarm with 'Acknowledge' button | Optional: Dual high H2S alarm light and relays (SPDT - 5A@ 230 VAC)
Specifications Ambient Temperature Range
32 to 120°F (0 to 40°C), may be operated at lower temperature with auxiliary heater
Specifications Drift
Less than 1% of full scale or 2 PPM per week, whichever is greater
Specifications Linearity
±1% of full scale or 1 PPM, which ever is higher
Specifications Method Of Detection
Disposable electrochemical cell
Specifications Output Options
0-1 VDC | 4-20 mA
Specifications Power
115 VAC, 60 Hz | 220 VAC, 50 Hz
Specifications Ranges Available
0-20 PPM standard
Specifications Resolution
1 PPM
Specifications Response Time T 90
Less than 15 seconds to 90% step change
Specifications Size Weight
14" H x 12" W x 8" D (35.6 x 30.5 x 20.3 cm) @ 18 lbs. (8.2 kg)
Unique Applications 0
All Nova analyzers are built using proven technologies and techniques. If this product does not suit your application, please contact Nova. In many cases, we are able to build an analyzer specific to your needs.
