Hytrex Depth Cartridge Filters - GX 100 µm, 9 7/8 in
Hytrex Depth Cartridge Filters - GX 100 µm, 9 7/8 in
SKU:DEP-6f188b
Hytrex Depth Cartridge Filters offer purity, efficiency, and reliability with FDA compliance & NSF certification.
Regular price
$22.99
Regular price
Sale price
$22.99
Unit price
per
Initiate Order
Hytrex Depth Cartridge Filters - GX 100 µm, 9 7/8 in
$22.99
Quantity: 1
Claim Your Seller Account
Hytrex Depth Cartridge Filters - GX 100 µm, 9 7/8 in
$22.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

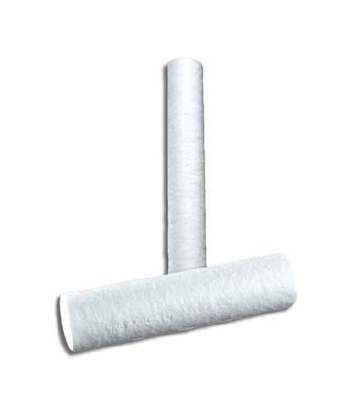

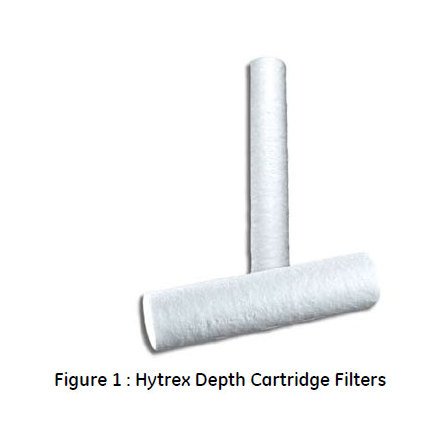

Hytrex Depth Cartridge Filters are engineered for purity, reliability, and consistent performance. Made of thermally bonded microfibers, these polypropylene filters trap particles throughout their depth, ensuring high filtration efficiency. With FDA compliance, wide chemical compatibility, and NSF Standard 42 certification, these filters deliver fast rinse-up in high purity applications. Trusted for their patented continuous process, high dirt-holding capacity, and wide range of lengths & adapters, Hytrex filters guarantee long life and cost savings. Ideal for applications in high purity chemicals, bottled water, pre-treatment for reverse osmosis, oil & gas, and electronics.
Product Specifications
Consistent Performance 0

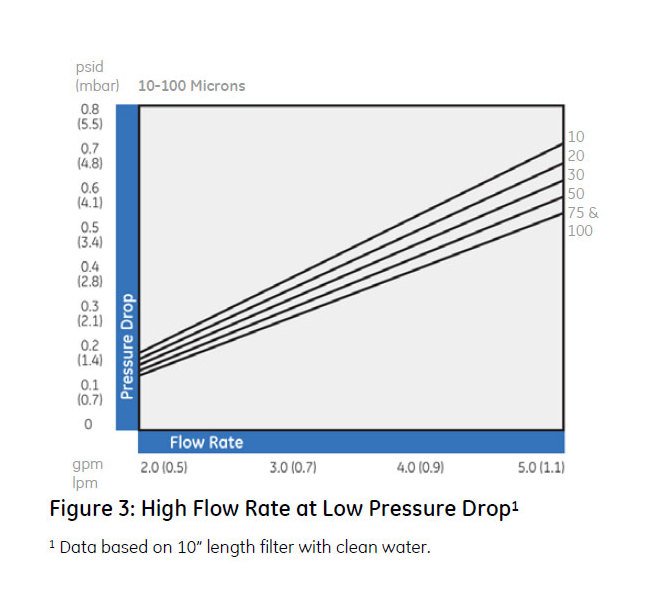

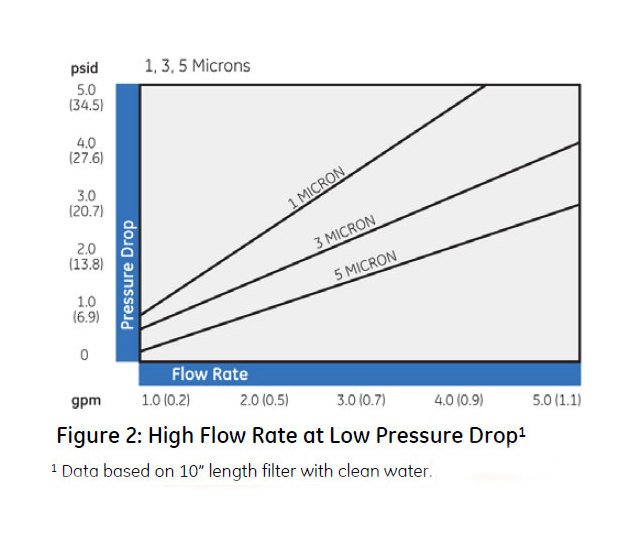

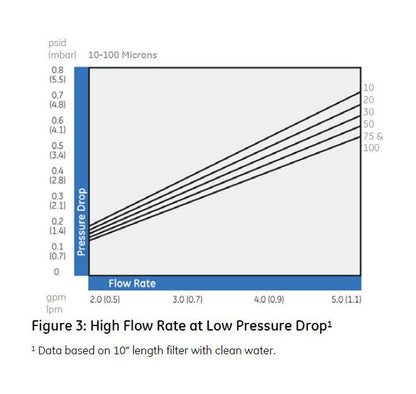

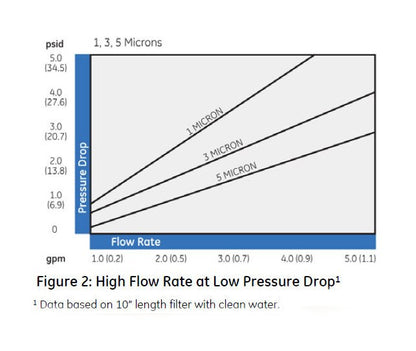

Patented, continuous process assures consistent product performance. Lot-to-lot, order-to-order, strict quality control assures repeatability. Figures 2 and 3 give greater detail of the high flow rate at low pressure drop for the various sizes of Hytrex filters.
High Dirt Holding Capacity 0
True-graded density captures particles throughout entire filter depthHigh dirt-holding capacity means longer life and fewer changeouts which translates to money savedLower density at the surface of the filter with progressively higher density toward the centerNo surface blinding, which reduces flow and increases filter changeouts
Important Notice To User 0
The following is made in lieu of all other warranties expressed or implied. Manufacturerâs and Sellerâs only obligation shall be to issue credit against the purchase or replacement of the product proved to be defective in material or workmanship. Neither Manufacturer nor Seller shall be liable for any injury, loss or damage, direct or indirect, special or consequential, arising out of the use of, misuse, or the inability to use such product. The information contained herein is based on technical data and tests which we believe to be reliable and is intended for use by persons having technical skill at their discretion and risk. Since conditions of use are outside GE control, we can assume no liability whatsoever for results obtained or damages incurred through the application of the data presented. This information is not intended as a license to operate under, or a recommendation to infringe upon, any patent of GE or others covering any material or use. The foregoing may not be altered except by a written agreement signed by officers of the Manufacturer.
Material And Fda Compliance 0
Hytrex cartridge filters are made from thermally welded blown microfibers of polypropylene. GE certifies that the resin used for manufacturing the filter media of this product meets the requirements of the Food and Drug Administration (FDA) Title 21 of the Code of Federal Regulations (CFR) 174.5 and relevant subparts of 177. If required, specify FDA compliant sealing materials and end adapters.
Operating Pressure Temperature 0
Maximum operating differential pressure: 35 psid @ 100ºF (38ºC)Maximum operating temperature: 160ºF (71ºC) @ 15 psid (103.4 kPa)
Specifications Cartridge Length
9 7/8 in | 25.1 cm
Specifications End 1 Adapter
1 inch (25.4 cm) Open End Gasket
Specifications End 2 Adapter
1 inch (25.4 cm) Open End Gasket | Fin | Self Seal Spring | Solid End | Standard Hytrex Plain End (No Gasket)
Specifications Gasket Material
Santoprene (Gasket Only)
Specifications Inside Diameter
1 in | 2.5 cm
Specifications Micron Rating
100 µm
Specifications Note
Trademark of General Electric Company; may be registered in one or more countries.
Specifications Outside Diameter
2.5 in | 6.4 cm
Specifications O Rings Material
Buna | EPDM | Silicone | Viton
Specifications Type
GX
Applications 0
High Purity ChemicalsBottled WaterPre-treatment for Reverse OsmosisOil & GasElectronics
Wide Range Of Lengths Adapters 0
Standard lengths fit most housings-custom lengths can also be providedWide range of polypropylene end-adapters including gaskets, extended cores andGE Water & Process Technologies patented self seal polypropylene springsIf required, specify FDA-compliant sealing materials and end adapters
