Innovative i-Fitting® 1/2" Tube Union for precise tube connections in high-pressure environments.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The i-Fitting® 1/2-Inch Tube Outside Diameter (D) Union is a premium solution for connecting fractional tubes. This union features a patented design by BMT, including body, front & back ferrule, nut, identification band, and a check ring for precise compression. The built-in gap gauge in the check ring ensures perfect tightening, enhancing installer safety in high-pressure and chemical environments. With a wide range of compatible materials and sizes, this union improves productivity, reduces costs, and is industry-changing in its design.

Product Specifications

Features Features

i-FittingÂ® components include: body, front & back ferrule, nut, identification band, and check ringThe check ring is essentially a built-in gap gauge, which separates when a fitting is tightened to the point of perfect compressionSolves over- and under-tightening problemsIncreases installer safety in high pressure and dangerous chemical environmentsImproves productivity and reduces costsIndustry changing, patented design by BMTApplicable to valve connections

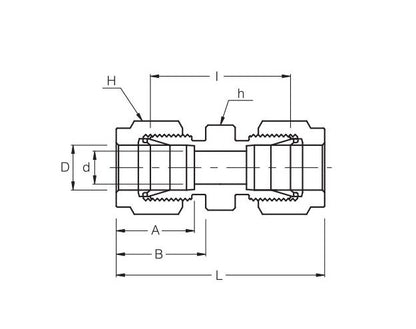

Technical Specs Dimension A

22.86 mm

Technical Specs Dimension B

21.84 mm

Technical Specs Dimension I

30.98 mm

Technical Specs Dimension L

51.30 mm

Technical Specs Material

Technical Specs Minimum Dimension D

10.41 mm

Technical Specs Standard Size

1/4 to 1 in

Technical Specs Tube Outside Diameter D

1/2 in

Technical Specs Width Across Flat H

7/8 in
