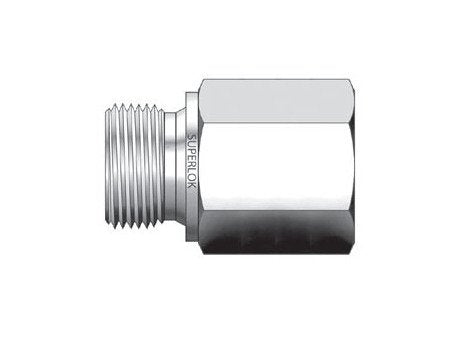

IA Series 1/4" NPT to Male ISO Parallel Pipe Adapter Fitting
IA Series 1/4" NPT to Male ISO Parallel Pipe Adapter Fitting
SKU:IAS-fabf1d
1/4" NPT to Male ISO Adapter - High-quality stainless steel fitting ensuring secure, leak-free connections for plumbing systems.
Regular price
$17.99
Regular price
Sale price
$17.99
Unit price
per
Initiate Order
IA Series 1/4" NPT to Male ISO Parallel Pipe Adapter Fitting
$17.99
Quantity: 1
Claim Your Seller Account
IA Series 1/4" NPT to Male ISO Parallel Pipe Adapter Fitting
$17.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IA Series 1/4" NPT to Male ISO Parallel Pipe Adapter Fitting is designed for seamless integration in plumbing systems requiring precision connections. Crafted from high-quality 316 stainless steel, brass, or carbon steel, this fitting ensures durability and reliable performance. With dimensions meeting industry standards and male ISO parallel pipe threads to female NPT transition, this adapter fitting guarantees a secure and leak-free connection. Ideal for both consumer and institutional use, this product offers versatility, longevity, and compliance with relevant standards.
Product Specifications
Note Note

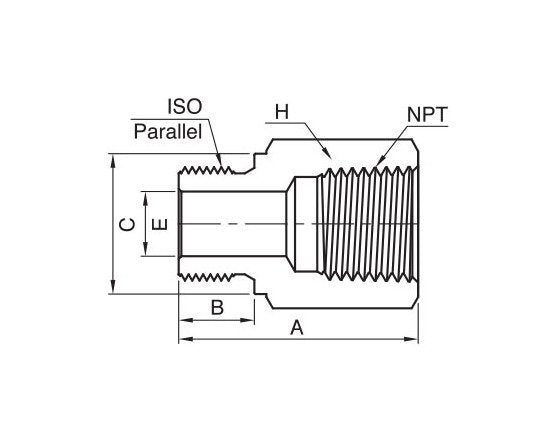

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
33.5 mm
Technical Specs Dimension B
12 mm
Technical Specs Dimension C
18.0 mm
Technical Specs Dimension E
5.8 mm
Technical Specs Dimension H
19.1 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size International Organization For Standar
1/4 in
Technical Specs Pipe Size National Pipe Thread Npt
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
