IA Series 1/8 Inch NPT Adapter Fitting | Male ISO to Female NPT

Name: IA Series 1/8 Inch NPT Adapter Fitting | Male ISO to Female NPT
Brand: Superlok-Mako Products LLC
SKU: IAS-cd1389
Price: 14.99 USD
Availability: OutOfStock

SKU:IAS-cd1389

Premium IA Series 1/8 Inch NPT Adapter Fitting for reliable Male ISO to Female NPT connections in various applications.

$14.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

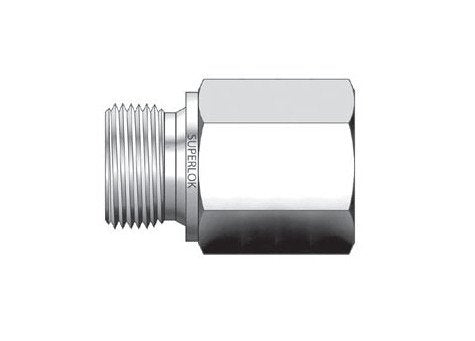

The IA Series 1/8 Inch NPT Adapter Fitting is a versatile solution designed to connect Male ISO Parallel Pipe Threads to Female NPT fittings. Crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel, this adapter ensures durability and reliability. With precise dimensions meeting industry standards, including 25.1 mm Dimension A and 13.7 mm Dimension C, it offers secure and leak-free connections. Ideal for various applications, this fitting guarantees seamless compatibility and efficient performance for both consumer and institutional needs.

Product Specifications

Note Note

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

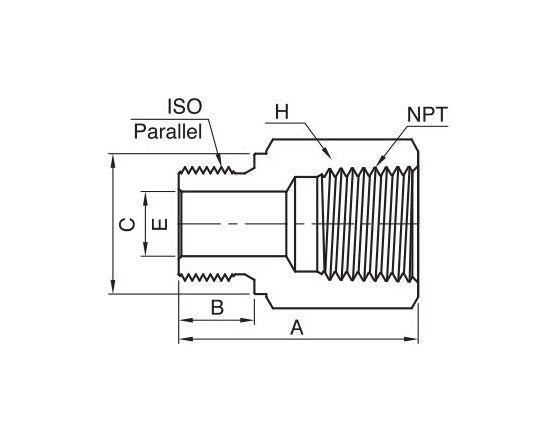

Technical Specs Dimension A

25.1 mm

Technical Specs Dimension B

8 mm

Technical Specs Dimension C

13.7 mm

Technical Specs Dimension E

4.1 mm

Technical Specs Dimension H

14.2 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size International Organization For Standar

1/8 in

Technical Specs Pipe Size National Pipe Thread Npt

1/8 in

Technical Specs Thread Type

National Pipe Thread (NPT)

IA Series 1/8 Inch NPT Adapter Fitting | Male ISO to Female NPT
