IAP200T120 PowerStack 200A/1200V 3-Phase IGBT Inverter
IAP200T120 PowerStack 200A/1200V 3-Phase IGBT Inverter
SKU:INT-cf8c40
Advanced IGBT inverter for high-performance applications. Customizable with built-in safety features.
Regular price
$3,599.99
Regular price
Sale price
$3,599.99
Unit price
per
Initiate Order
IAP200T120 PowerStack 200A/1200V 3-Phase IGBT Inverter
$3,599.99
Quantity: 1
Claim Your Seller Account
IAP200T120 PowerStack 200A/1200V 3-Phase IGBT Inverter
$3,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

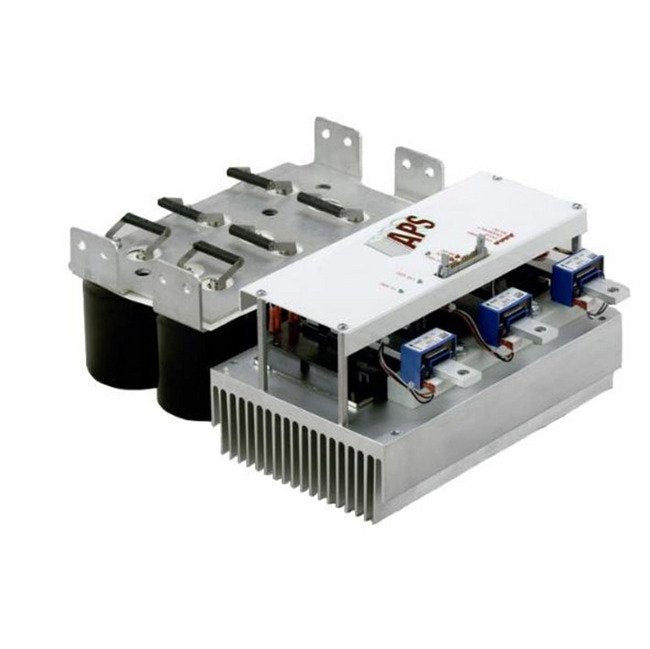

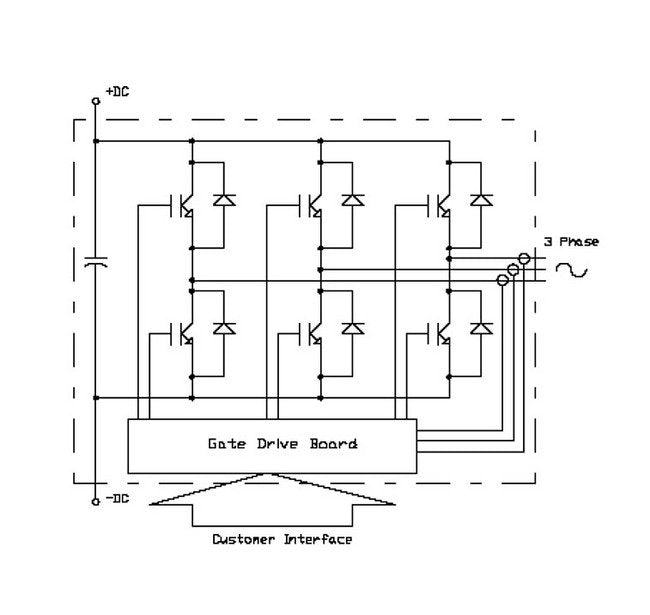

The IAP200T120 PowerStack is an advanced and versatile IGBT-based power assembly designed for a wide array of applications, including renewable energy, motor controls, and UPS systems. With a high operating frequency of over 20kHz and multiple configuration options, this three-phase bridge inverter delivers exceptional performance and reliability. Featuring built-in protection mechanisms, temperature sensors, and various safety features, the IAP200T120 PowerStack provides superior efficiency and customizable solutions for diverse institutional needs.
Product Specifications
Additional Information Additional Information
To operate at high switching frequencies, the IAP300B170H PowerStack utilizes a low inductance laminated bus structure, optically isolated or fiberoptically coupled gate drive interfaces, isolated gate power supplies and a DC-link capacitor bank.The IAP200T120 PowerStack provides built in protection features including: overvoltage, undervoltage lockout,overcurrent, overtemperature, short circuit and optional air flow or liquid flow indicators.Flexibility is a key feature of the IAP200T120 PowerStack.Options include: a choice of converter front ends, rectifier,half or full SCR control, with or without SCR gate firing boards and soft-start circuitry. A choice of cooling methods, forced air or liquid is also available. Customer provided PWM is optically coupled or a fiber optic link canbe provided to the IGBT interface. Current feedback is provided by Hall effect current transducers.The IAP200T120 PowerStack is rated to maximum input voltages up to 850 VDC, switching frequencies to over 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
11 in
Compact Size Height
8 in
Compact Size Width
17.60 in
Features Features
Multi-Function Power AssemblyProtective circuitry with fail-safe opto-isolated fault annunciation,including: OverCurrent OverVoltage Short circuit P.S. UnderVoltage OverTemperatureOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated cooling with temperature sensors and feedbackMany options â Diode/SCR Front End, etc.
Gate Drive Board Electrical Characteristics Maximum Overtemperat
98 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
94 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
300 A
Gate Drive Board Electrical Characteristics Overtemperat
96 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
-40 to +150 ºC
General Storage Temperature Tstg
-40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
850 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
200 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
VCE = VCES | VGE = 0 V
Technical Specs Brands
Applied Power Systems, Inc.
Technical Specs Direct Current Dc Bus Voltages
850 V
