IAPL300T120 PowerStack Liquid-Cooled IGBT Inverter
IAPL300T120 PowerStack Liquid-Cooled IGBT Inverter
SKU:POW-603017
Versatile liquid-cooled IGBT inverter for reliable power control in a compact design.
Regular price
$5,999.99
Regular price
Sale price
$5,999.99
Unit price
per
Initiate Order
IAPL300T120 PowerStack Liquid-Cooled IGBT Inverter
$5,999.99
Quantity: 1
Claim Your Seller Account
IAPL300T120 PowerStack Liquid-Cooled IGBT Inverter
$5,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

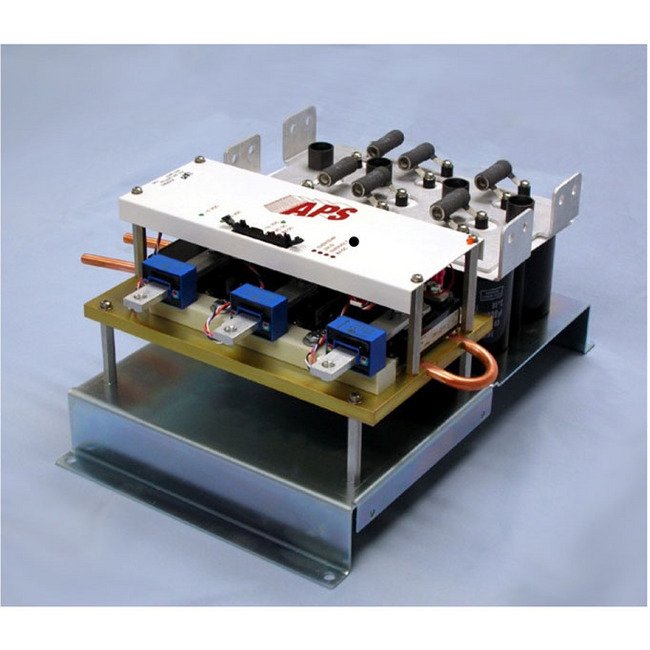

The IAPL300T120 PowerStack is a versatile power assembly designed for a range of applications, including motor controls and switch mode power supplies. Operating at frequencies up to 20kHz, this three-phase bridge inverter offers options for various input and output circuitries, cooling systems, and safety features. With a compact size of 9.00" H x 11.00" W x 17.5" D, it features a robust design with integrated liquid cooling and protective circuitry. The IAPL300T120 PowerStack ensures reliable performance and can be configured to meet specific application requirements.
Product Specifications
Additional Information Additional Information

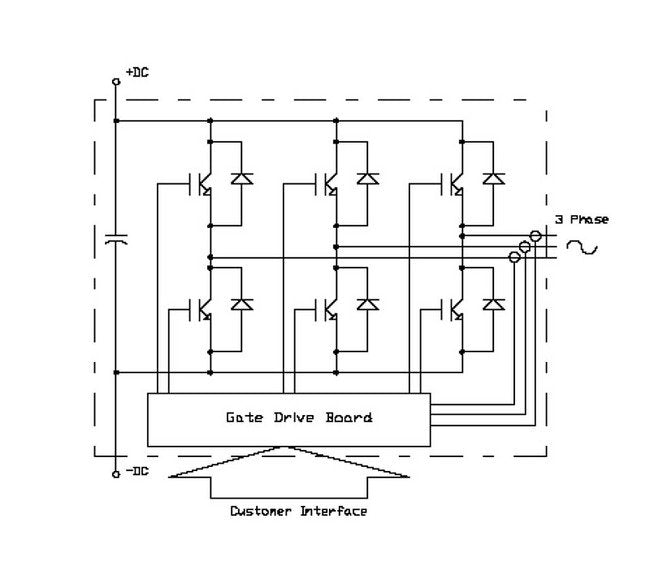

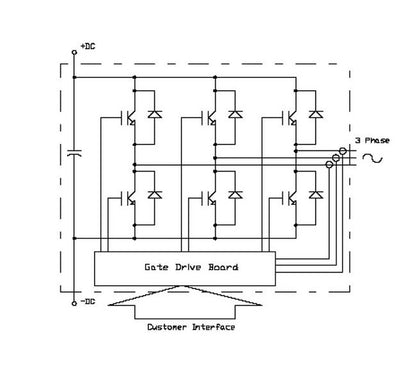

To operate at high switching frequencies, the IAPL300T120 PowerStack utilizes a low inductance laminated bus structure, optically isolated or fiber optically coupled gate drive interfaces, isolated gate power supplies and a DC-link capacitor bank.The IAPL300T120 PowerStack provides built in protection features including: OverVoltage, UnderVoltage lockout, OverCurrent, OverTemperature, short circuit and optional airflow or liquid flow indicators.Flexibility is a key feature of the IAPL300T120 PowerStack. Customer provided PWM is optically coupled or a fiber optic link can be provided to the IGBT interface. Current feedback is provided by Hall Effect current transducers.The IAPL300T120 PowerStack is rated to maximum input voltages up to 800 VDC, switching frequencies up to 20kHz, includes many safety features to protect the IGBTs and output circuitry and can be configured to meet your application.
Compact Size Depth
17.5 in
Compact Size Height
9.00 in
Compact Size Width
11.00 in
Features Features
Multi-Function Power AssemblyCompact Size â 9.0" H X 11.0" W X 17.5" DDC Bus Voltages to 800 VDCSnubber-less operation to 750 VDCSwitching frequencies up to 20 kHzProtective circuitry with fail-safe opto annunciation, including:OverCurrentOverVoltageOverTemperatureShort circuitP.S. UnderVoltageOpto-isolated or fiber-optic gate drive and fault signal output for electrical isolation and noise immunityIntegrated liquid cooling with temperature sensors and feedbackMany options - IGBTs available from 75 A to 1400 A
Gate Drive Board Electrical Characteristics Maximum Overtemperat
92 ºC
Gate Drive Board Electrical Characteristics Maximum Pulse Width
2 V
Gate Drive Board Electrical Characteristics Maximum Regulated Po
18 V
Gate Drive Board Electrical Characteristics Maximum Unregulated
30 V
Gate Drive Board Electrical Characteristics Minimum Overtemperat
88 ºC
Gate Drive Board Electrical Characteristics Minimum Pulse Width
12 V
Gate Drive Board Electrical Characteristics Minimum Regulated Po
14.4 V
Gate Drive Board Electrical Characteristics Minimum Unregulated
20 V
Gate Drive Board Electrical Characteristics Output Overc
450 A
Gate Drive Board Electrical Characteristics Overtemperat
90 ºC
Gate Drive Board Electrical Characteristics Overvoltage
900 V
Gate Drive Board Electrical Characteristics Pulse Width
0 V
Gate Drive Board Electrical Characteristics Regulated Po
15 V
Gate Drive Board Electrical Characteristics Unregulated
24 V
Gate Drive Board Fault Output Current
50 mA
Gate Drive Board Fault Output Supply Voltage
30 V
Gate Drive Board Pulse Width Modulation Pwm Signal Input Voltage
20 V
General Alternating Current Ac Isolation Voltage At 1 Minute And
2500 V
General Insulated Gate Bipolar Transistor Igbt Junction Temperat
-40 to 175 ºC
General Note For Absolute Maximum Ratings
TJ = 25 ºC unless otherwise Specified
General Operating Temperature Top
-25 to +85 ºC
General Storage Temperature Tstg
- 40 to +125 ºC
General Voltage Applied To Direct Current Dc Terminals Vcc
900 V
Insulated Gate Bipolar Transistor Igbt Inverter Collector Curren
300 A
Insulated Gate Bipolar Transistor Igbt Inverter Electrical Chara
200 ns
Technical Specs Brands
Applied Power Systems, Inc.
