IB949 Horizontal Swing Check Valve - Bronze, 38.10 mm
IB949 Horizontal Swing Check Valve - Bronze, 38.10 mm
SKU:VAL-4a2b43
High-quality IB949 Horizontal Swing Check Valve in Bronze for industrial applications, 300 lb. SWP, 425°F, MSS SP-80 Type 3 Class 300 compliant.
Regular price
$69.99
Regular price
Sale price
$69.99
Unit price
per
Initiate Order
IB949 Horizontal Swing Check Valve - Bronze, 38.10 mm
$69.99
Quantity: 1
Claim Your Seller Account
IB949 Horizontal Swing Check Valve - Bronze, 38.10 mm
$69.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IB949 Horizontal Swing Check Valve in Bronze is a high-quality valve designed for industrial applications. With a working pressure of 300 lb. SWP and temperature resistance of up to 425°F, this valve ensures reliable performance under demanding conditions. Featuring a Y-Pattern design, threaded ends, and conforms to MSS SP-80 Type 3 Class 300 standards, this valve is ideal for check valve applications in various industries.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Material List 0

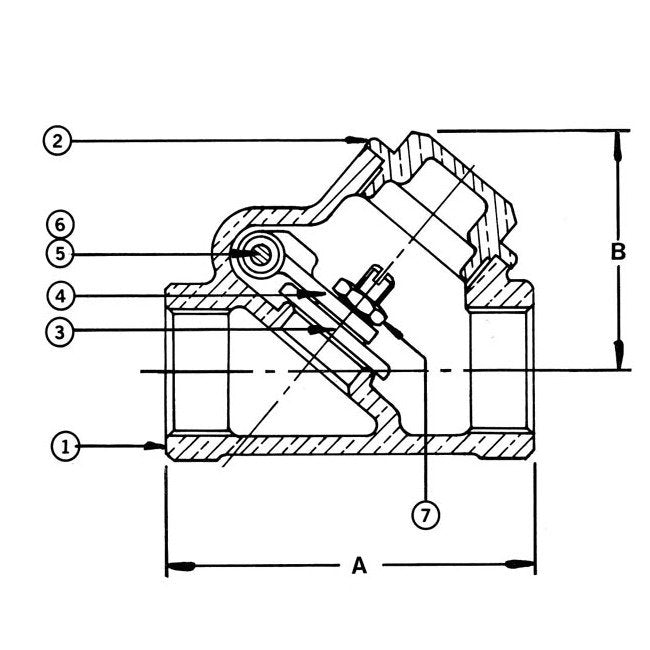

No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
130.18 mm
Specifications Dimension B
84.14 mm
Specifications Material
Bronze
Specifications Size
38.10 mm
