IB949 Horizontal Swing Check Valve - Bronze, 50.80mm
IB949 Horizontal Swing Check Valve - Bronze, 50.80mm
SKU:VAL-e91b09
High-quality IB949 Horizontal Swing Check Valve in Bronze, 50.80mm. Meets MSS SP-80 & Class 300 standards. Durable & reliable for various applications.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
IB949 Horizontal Swing Check Valve - Bronze, 50.80mm
$99.99
Quantity: 1
Claim Your Seller Account
IB949 Horizontal Swing Check Valve - Bronze, 50.80mm
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IB949 Horizontal Swing Check Valve in Bronze is a high-quality valve suitable for various applications. With a working pressure of 300 lb. SWP and temperature rating of 425°F, this valve offers reliable performance. It features a Y-Pattern design, reground Bronze Disc, and Threaded Ends, meeting MSS SP-80 Type 3, Class 300 standards. Constructed from Cast Bronze and featuring St. Steel and Brass components, this valve ensures durability and longevity in operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications

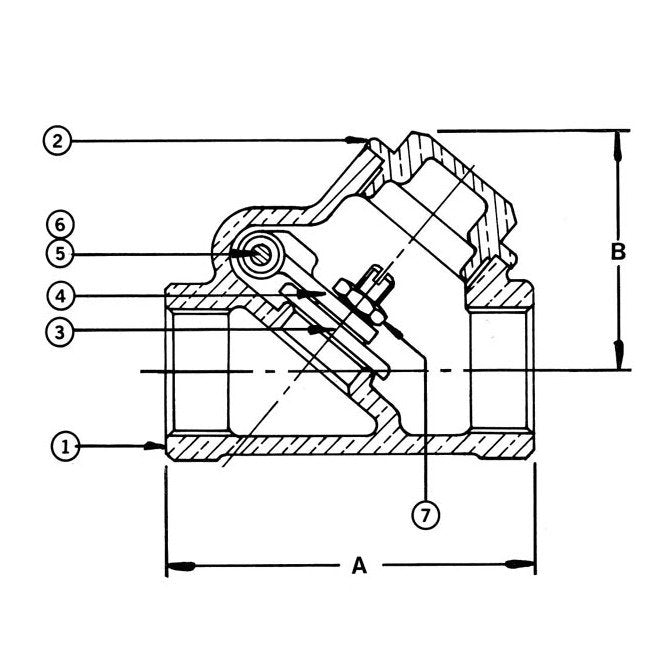

Material List 0
No. Â Part Material Specification 1 Body Cast Bronze ASTM B 61 2 Cap Cast Bronze ASTM B 61 3 Disc Cast Bronze ASTM B 61 4 Lever Cast Bronze ASTM B 61 5 Pin St. Steel Commercial 6 Plug Rod Brass ASTM B 16 7 Disc Nut Rod Brass ASTM B 16
Specifications Dimension A
149.22 mm
Specifications Dimension B
207.98 mm
Specifications Material
Bronze
Specifications Size
50.80 mm
