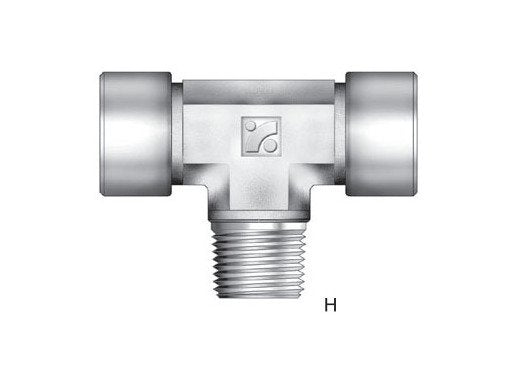

IBT Series 1/2 Inch Branch Tee Fitting - NPT Threads
IBT Series 1/2 Inch Branch Tee Fitting - NPT Threads
SKU:IBT-55b18e
High-quality 1/2" Branch Tee Fitting with NPT Threads for secure pipe connections. Durable and corrosion-resistant design for reliable performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IBT Series 1/2 Inch Branch Tee Fitting - NPT Threads
$29.99
Quantity: 1
Claim Your Seller Account
IBT Series 1/2 Inch Branch Tee Fitting - NPT Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IBT Series 1/2 Inch Branch Tee Fitting is a precision-engineered solution for connecting pipes efficiently. With male and female NPT threads, this fitting ensures secure and leak-free connections suitable for both consumer and institutional applications. Crafted from high-quality 316 stainless steel, brass, or carbon steel, it offers exceptional durability and corrosion resistance. Designed to meet stringent industry standards, this fitting guarantees reliable performance and easy installation.
Product Specifications
Note Note

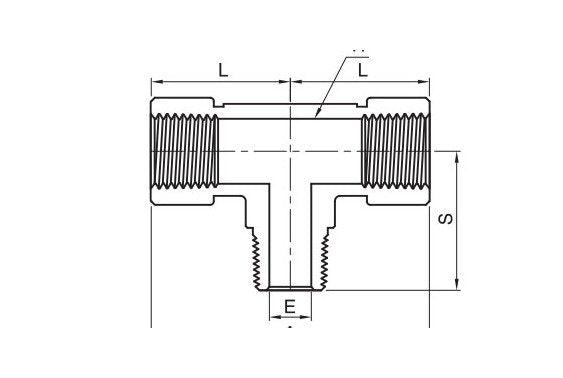

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
74.0 mm
Technical Specs Dimension E
11.9 mm
Technical Specs Dimension H
25.4 mm
Technical Specs Dimension L
37.0 mm
Technical Specs Dimension S
35.3 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1/2 in
Technical Specs Thread Type
National Pipe Thread (NPT)
