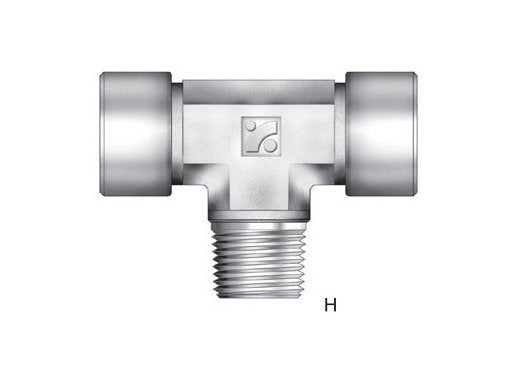

IBT Series 1/4 Inch Pipe Size Branch Tee Fitting
IBT Series 1/4 Inch Pipe Size Branch Tee Fitting
SKU:IBT-135d0b
High-quality 1/4 Inch Branch Tee Fitting with NPT threads for precise fluid system installations.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
IBT Series 1/4 Inch Pipe Size Branch Tee Fitting
$24.99
Quantity: 1
Claim Your Seller Account
IBT Series 1/4 Inch Pipe Size Branch Tee Fitting
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IBT Series 1/4 Inch Pipe Size Branch Tee Fitting features male and female NPT threads, making it ideal for fluid system installations requiring precision and durability. Crafted from high-quality 316 stainless steel, brass, or carbon steel, this fitting ensures reliable performance and corrosion resistance. With precise dimensions meeting industry standards, this fitting is versatile and adaptable to various applications. Enhance your fluid systems with the IBT Series Branch Tee Fitting for exceptional quality and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Note Note

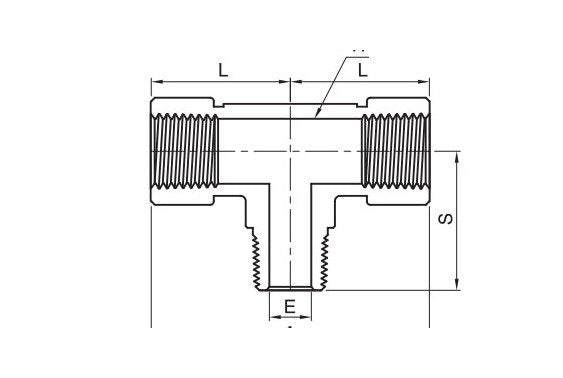

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.
Technical Specs Dimension A
58.0 mm
Technical Specs Dimension E
7.1 mm
Technical Specs Dimension H
17.5 mm
Technical Specs Dimension L
29.0 mm
Technical Specs Dimension S
26.5 mm
Technical Specs Material
316 Stainless Steel | Brass | Carbon Steel
Technical Specs Pipe Size
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
