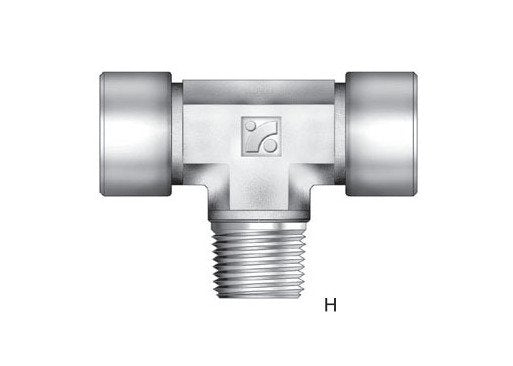

IBT Series 1 Inch Branch Tee Fitting - Male/Female NPT Threads

Name: IBT Series 1 Inch Branch Tee Fitting - Male/Female NPT Threads
Brand: Superlok-Mako Products LLC
SKU: IBT-82d635
Price: 25.99 USD
Availability: OutOfStock

SKU:IBT-82d635

High-quality 1" Branch Tee Fitting with Male/Female NPT Threads. Durable construction, precise dimensions, and compliant with key institutional standards.

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The IBT Series 1 Inch Branch Tee Fitting features Male and Female NPT Threads, crafted from high-quality 316 Stainless Steel, Brass, or Carbon Steel. With precise dimensions and robust materials, this fitting ensures durability and reliability in plumbing systems. Designed for easy installation and a secure fit, it complies with Federal/DoD procurement standards, GSA requirements, and industry-specific certifications.

Product Specifications

Note Note

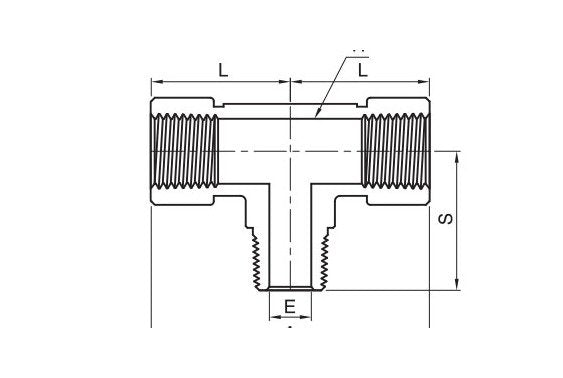

Dimensions and Drawings are for reference only and are subject to change without prior notice.Sizes, pressure classes. and end connections not listed are available upon request.

Technical Specs Dimension A

97.0 mm

Technical Specs Dimension E

22.4 mm

Technical Specs Dimension H

42.9 mm

Technical Specs Dimension L

48.5 mm

Technical Specs Dimension S

49.2 mm

Technical Specs Material

316 Stainless Steel | Brass | Carbon Steel

Technical Specs Pipe Size

1 in

Technical Specs Thread Type

National Pipe Thread (NPT)

IBT Series 1 Inch Branch Tee Fitting - Male/Female NPT Threads
