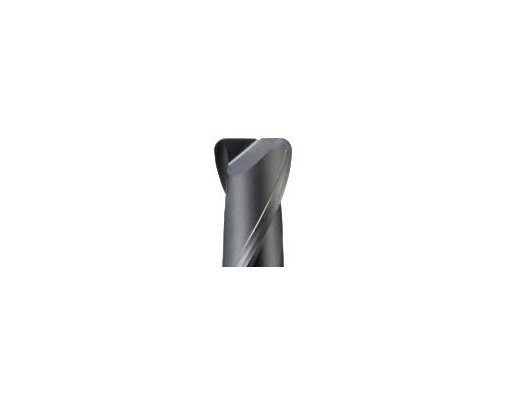

IDI 2-Flute Corner Radius Diamond Coated End Mill

Name: IDI 2-Flute Corner Radius Diamond Coated End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-660a8f
Price: 39.99 USD
Availability: OutOfStock

SKU:DIA-660a8f

Achieve superior cutting performance and extended tool life with IDI's Diamond Coated End Mill for graphite and composite material machining.

$39.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

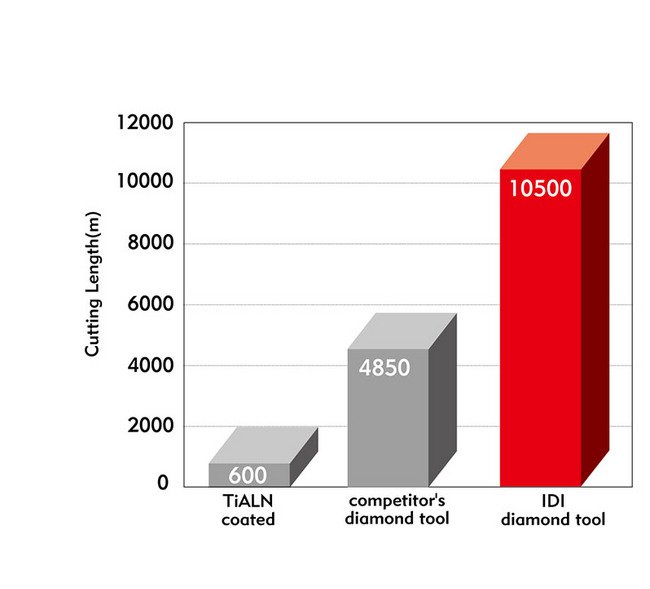

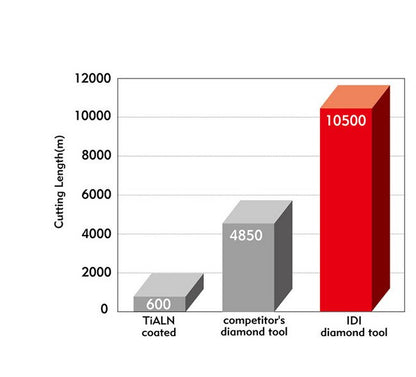

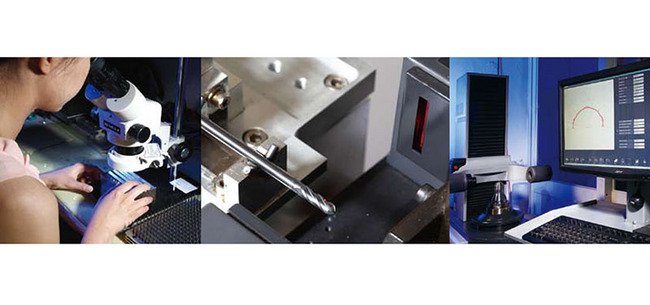

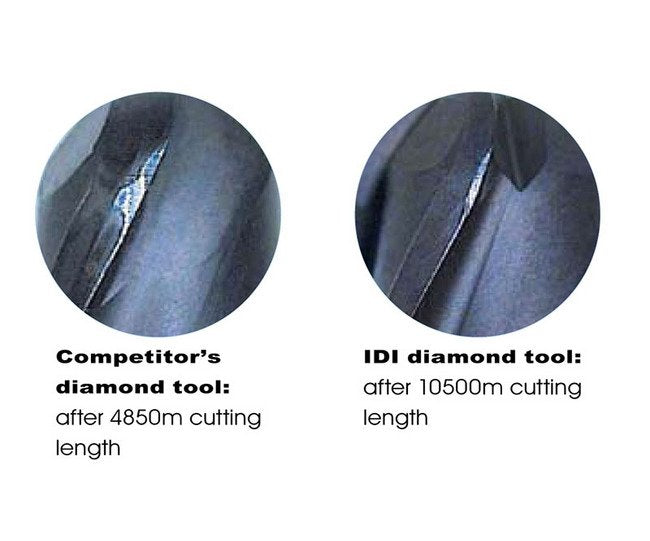

The IDI 2-Flute Corner Radius Diamond Coated End Mill offers exceptional cutting performance and durability, with a tool life that surpasses uncoated tools by 12-20 times. Utilizing a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill undergoes rigorous quality controls using Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP, glass fiber plastics, and ceramics, this tool delivers precise and reliable results for a variety of applications.

Product Specifications

Applications

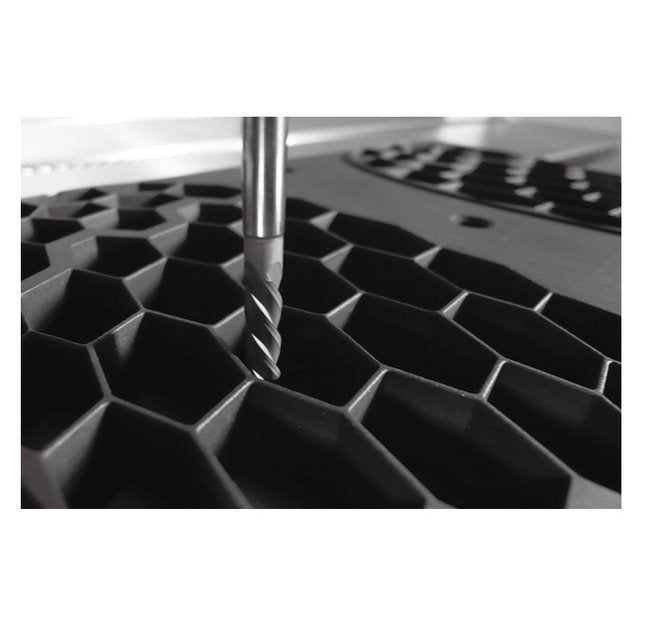

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

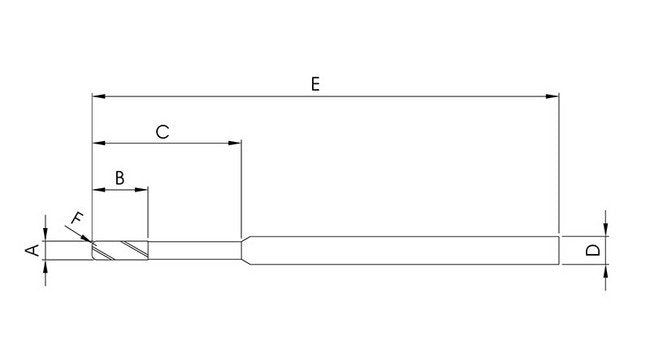

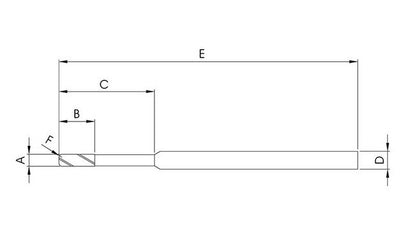

Specifications Corner Radius F

0.2 mm

Specifications Cutting Diameter A

1.5 mm

Specifications Flute Length B

3 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

16 mm

Specifications Shank Diameter D

3 mm
