IDI 4-Flute Corner Radius Diamond Coated End Mill 6mm
IDI 4-Flute Corner Radius Diamond Coated End Mill 6mm
SKU:DIA-ee41cb
Unleash precision and durability with the IDI Diamond Coated End Mill - Perfect for graphite milling & composite materials
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
IDI 4-Flute Corner Radius Diamond Coated End Mill 6mm
$59.99
Quantity: 1
Claim Your Seller Account
IDI 4-Flute Corner Radius Diamond Coated End Mill 6mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top cutting performance and exceptional tool longevity with the IDI 4-Flute Corner Radius Diamond Coated End Mill. Specially sintered substrate, high-performance geometry, and superior diamond coating ensure longevity surpassing uncoated tools by 12-20 times. Precision control using Zoller Measuring Machine and Mitutoyo Laser Scan Meter guarantees perfect tool geometry. Ideal for graphite milling in the semiconductor industry, mold industry, and composite materials like CFRP and ceramics, this tool offers unmatched reliability and efficiency. Dive into precision with this cutting-edge solution!
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

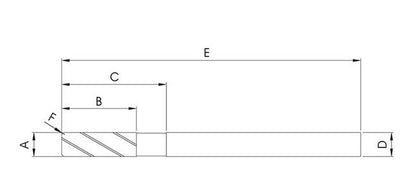

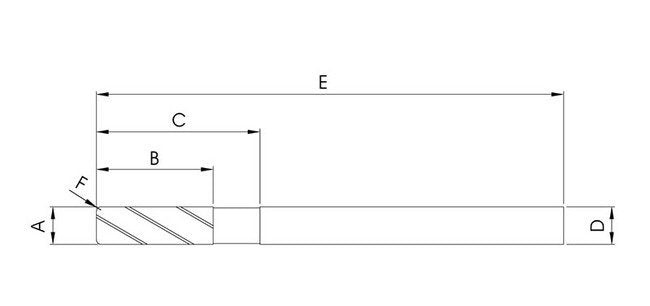

Specifications Corner Radius F
0.3/0.5 mm
Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
60 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
