IDI 4-Flute Diamond Coated Ball Nose End Mill
IDI 4-Flute Diamond Coated Ball Nose End Mill
SKU:DIA-43b364
Maximize machining precision and longevity with the IDI 4-Flute Diamond Coated Ball Nose End Mill.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
IDI 4-Flute Diamond Coated Ball Nose End Mill
$59.99
Quantity: 1
Claim Your Seller Account
IDI 4-Flute Diamond Coated Ball Nose End Mill
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining performance with the IDI 4-Flute Diamond Coated Ball Nose End Mill. Engineered with a durable diamond coating, this end mill offers exceptional cutting performance, longevity, and precision. Utilizing advanced tool geometry and a sintered substrate, this tool surpasses uncoated alternatives with a tool life that can exceed 12-20 times. Rigorous quality control using Zoller and Mitutoyo equipment ensures each tool meets the highest standards. Perfect for graphite, composite materials, and ceramics, this end mill delivers superior results in precise applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

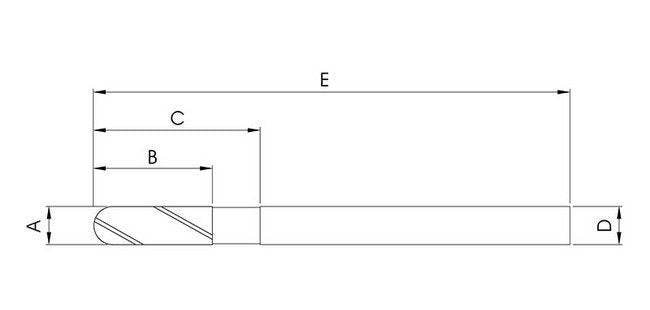

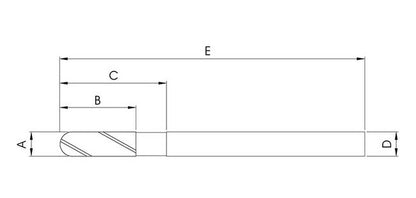

Specifications Cutting Diameter A
4 mm
Specifications Flute Length B
15 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
20 mm
Specifications Shank Diameter D
4 mm
