IDI Diamond Coated 2-Flute Ball Nose End Mill - 0.2mm
IDI Diamond Coated 2-Flute Ball Nose End Mill - 0.2mm
SKU:DIA-26c113
Unleash unbeatable machining prowess with the IDI Diamond Coated 2-Flute Ball Nose End Mill - the ultimate in cutting performance and durability.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Ball Nose End Mill - 0.2mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Ball Nose End Mill - 0.2mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

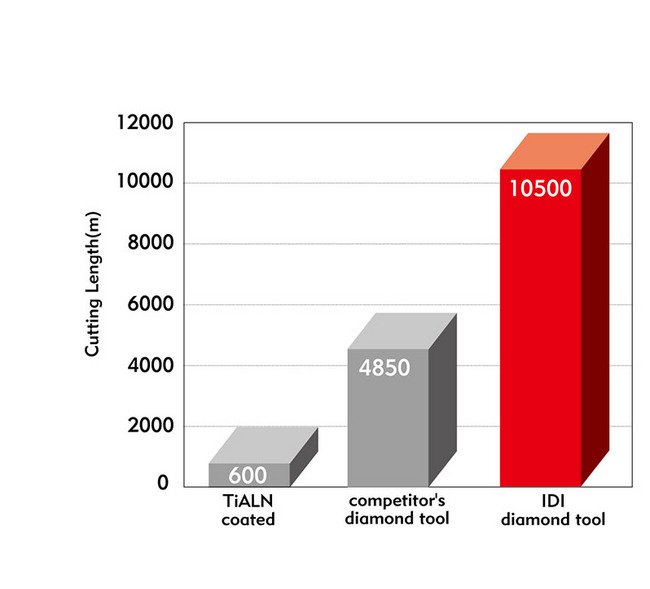

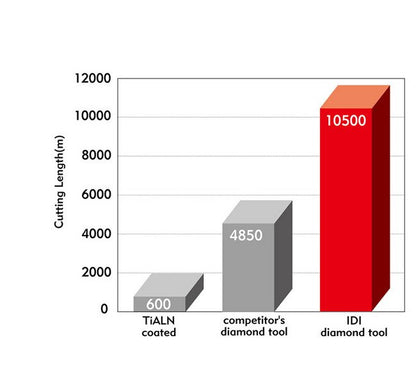

Boost your machining efficiency with the IDI Diamond Coated 2-Flute Ball Nose End Mill. Engineered for top cutting performance and unmatched durability, this end mill boasts a specially sintered substrate, high-performance tool geometry, and a superior diamond coating. With a tool lifetime up to 20 times longer than uncoated tools, precision is guaranteed through meticulous quality control measures. Ideal for graphite milling, composite materials, and ceramics machining, this end mill delivers impeccable results even in the most demanding applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

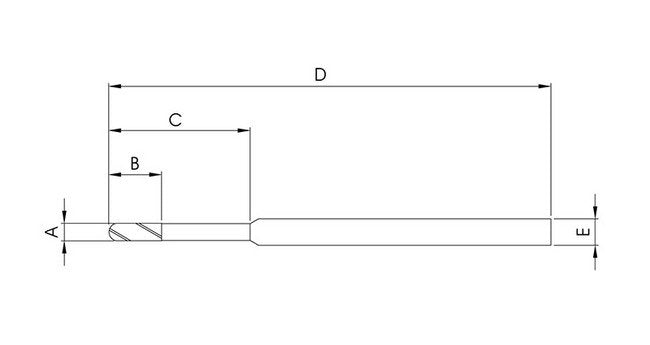

Specifications Cutting Diameter A
0.2 mm
Specifications Flute Length B
0.4 mm
Specifications Number Of Flute
2
Specifications Overall Length E
40 mm
Specifications Reach C
0.4 mm
Specifications Shank Diameter D
3 mm
