IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
SKU:DIA-6e97c3
Unmatched tool performance and longevity with IDI Diamond Coated 2-Flute End Mill. Ideal for graphite milling & composite materials.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$29.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

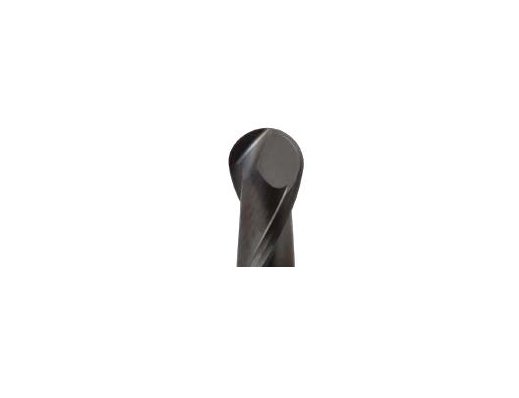

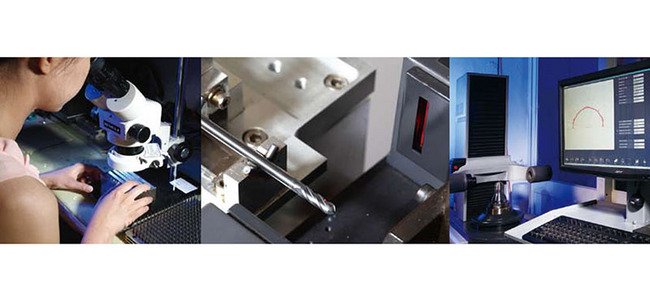

The IDI Diamond Coated 2-Flute Ball Nose End Mill offers exceptional cutting performance and unmatched durability, surpassing uncoated tools by 12-20 times. Crafted with a specially sintered substrate, superior tool geometry, and a premium diamond coating, this end mill is meticulously inspected using advanced equipment to ensure precision and perfection. Ideal for graphite milling in semiconductor and die/mold industries, as well as composite materials like CFRP, glass fiber plastics, PEEK, and more, this tool guarantees superior results and extended tool life.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

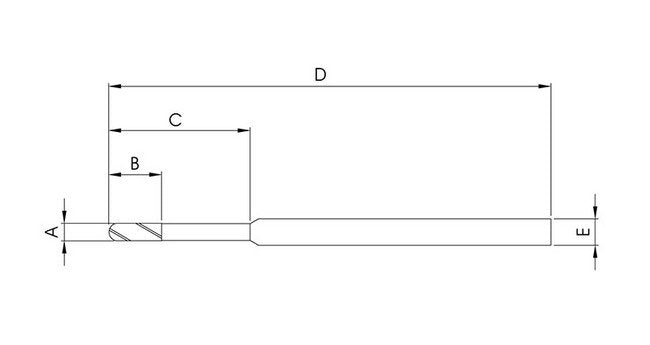

Specifications Cutting Diameter A
1 mm
Specifications Flute Length B
2 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
10 mm
Specifications Shank Diameter D
3 mm
