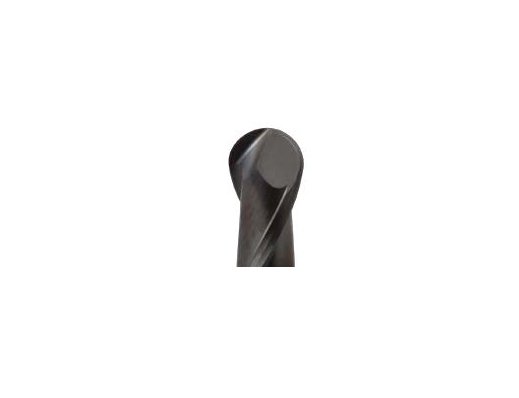

IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
SKU:DIA-ce4402
Maximize efficiency with IDI Diamond Coated 2-Flute Ball Nose End Mill. Top cutting performance, long tool life.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Ball Nose End Mill - 1mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

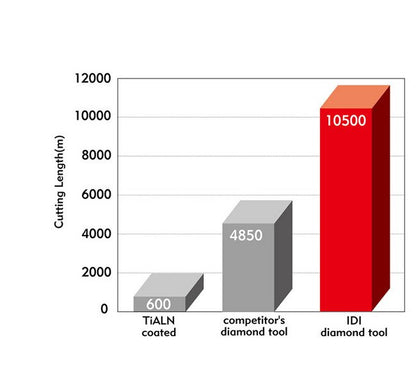

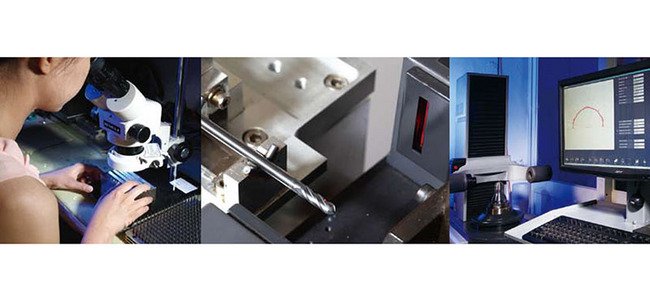

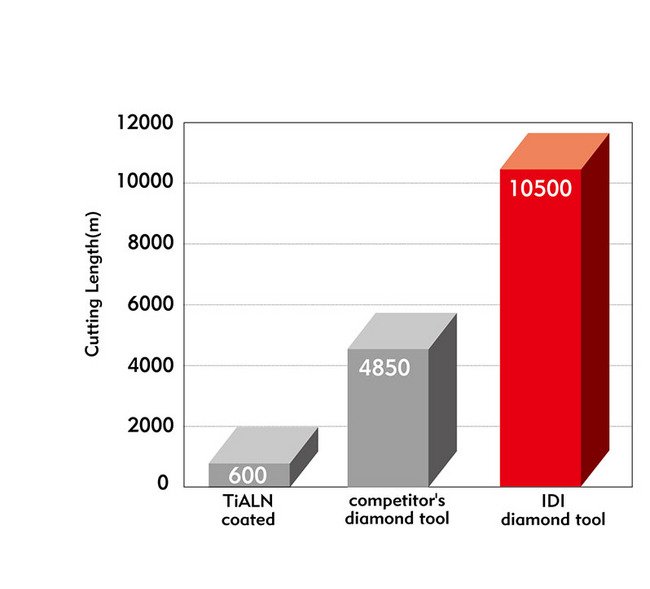

Enhance your machining operations with the IDI diamond coated 2-flute ball nose end mill. Featuring top cutting performance and exceptional tool longevity, this end mill surpasses uncoated tools by 12-20 times. Utilizing a specially sintered substrate, high-performance tool geometry, and a superior diamond coating, each tool undergoes rigorous quality checks with precise equipment. Ideal for graphite milling in semiconductor and die industries, as well as composite materials like CFRP and ceramics. Increase efficiency and precision with this premium end mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

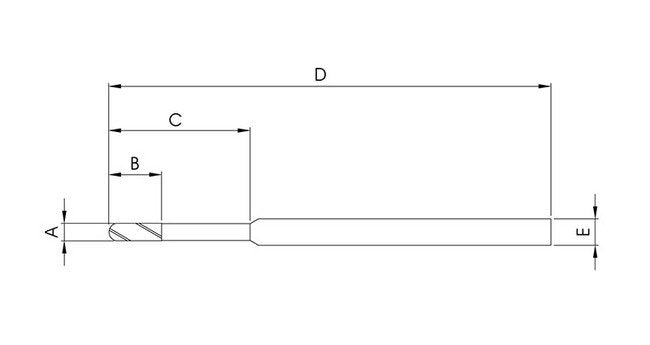

Specifications Cutting Diameter A
1 mm
Specifications Flute Length B
2 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
6 mm
Specifications Shank Diameter D
3 mm
