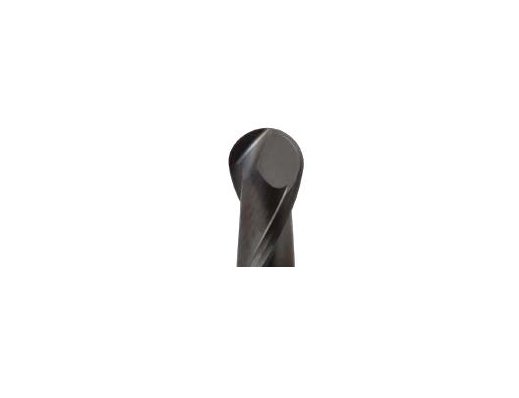

IDI Diamond Coated 2-Flute Ball Nose End Mill - 2mm
IDI Diamond Coated 2-Flute Ball Nose End Mill - 2mm
SKU:DIA-4f9f5f
Achieve superior cutting performance and extended tool life with IDI Diamond Coated 2-Flute Ball Nose End Mill - Ideal for graphite milling and composite materials.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Ball Nose End Mill - 2mm
$39.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Ball Nose End Mill - 2mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

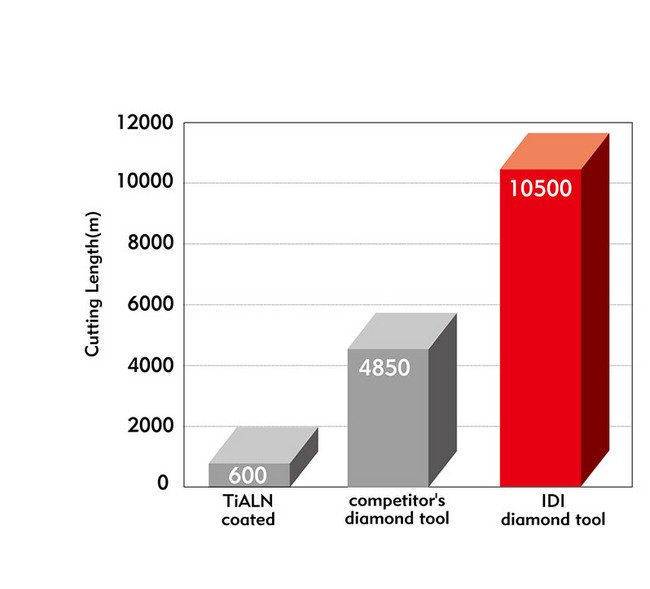

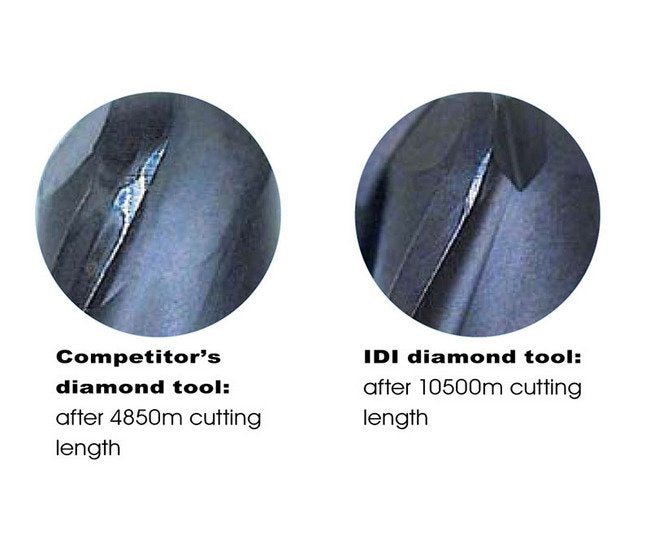

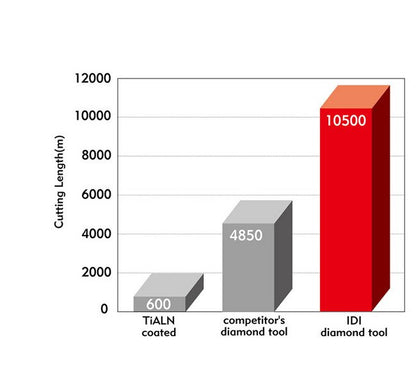

Experience top cutting performance and unparalleled durability with the IDI Diamond Coated 2-Flute Ball Nose End Mill. Engineered with a specially sintered substrate, high-performance geometry, and exceptional diamond coating, this tool exceeds the tool life of uncoated options by 12-20 times. Perfect for graphite milling in semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics. Every tool undergoes rigorous quality checks with advanced equipment to ensure precision and reliability.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

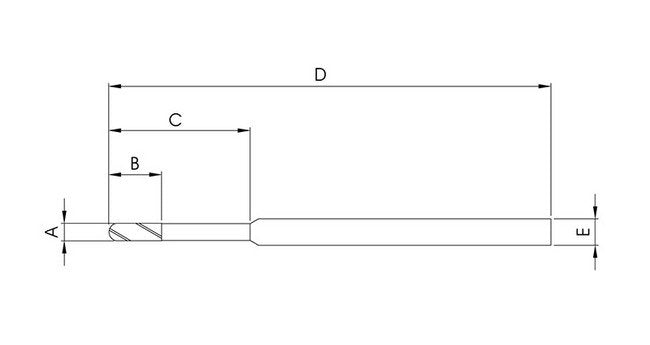

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
10 mm
Specifications Shank Diameter D
3 mm
