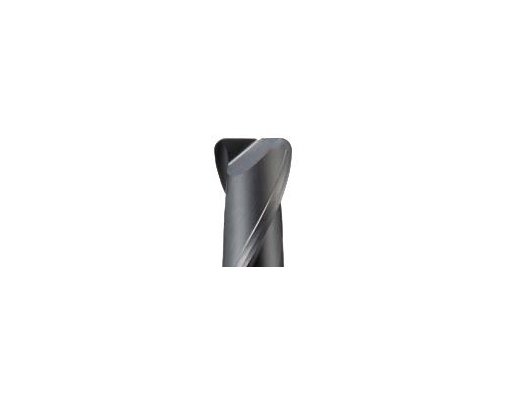

IDI Diamond Coated 2-Flute Corner Radius End Mill

IDI Diamond Coated 2-Flute Corner Radius End Mill

DIA-d6694d

Achieve top cutting performance and extended tool life with IDI's Diamond Coated 2-Flute End Mill. Perfect for graphite milling and composite materials.

$39.99
$39.99
Sale

Initiate Order

IDI Diamond Coated 2-Flute Corner Radius End Mill

IDI Diamond Coated 2-Flute Corner Radius End Mill

$39.99

Quantity: 1

Claim Your Seller Account

IDI Diamond Coated 2-Flute Corner Radius End Mill

IDI Diamond Coated 2-Flute Corner Radius End Mill

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

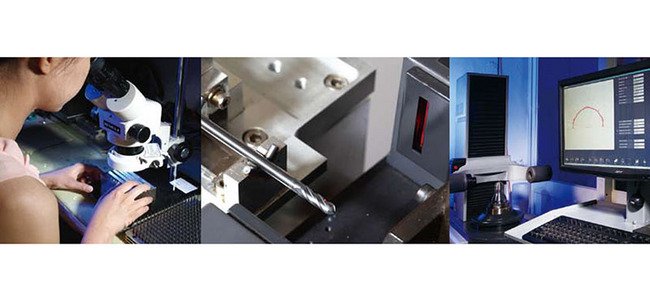

Experience unparalleled cutting performance and exceptional tool longevity with the IDI Diamond Coated 2-Flute Corner Radius End Mill. Crafted with a sintered substrate, advanced tool geometry, and a superior diamond coating, this end mill delivers durability and precision. Utilizing precise equipment such as a Zoller Measuring Machine and a Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection to ensure flawless quality. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics, this end mill offers unmatched versatility and reliability.

Product Specifications

Applications

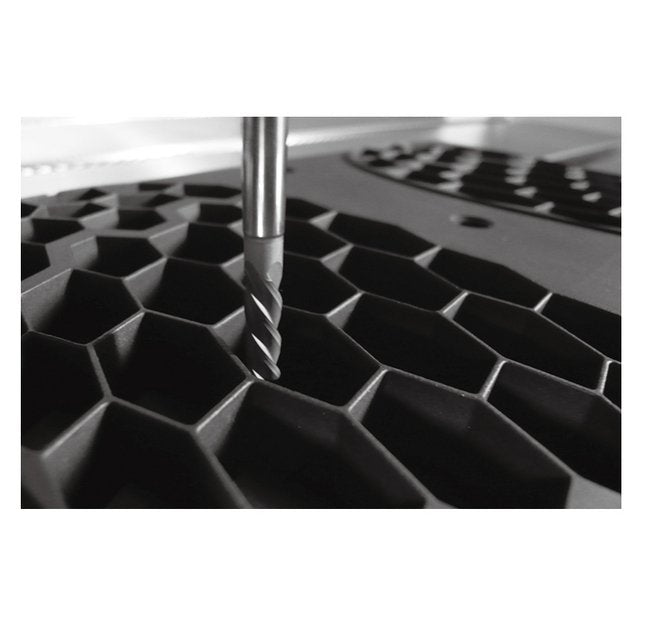

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0

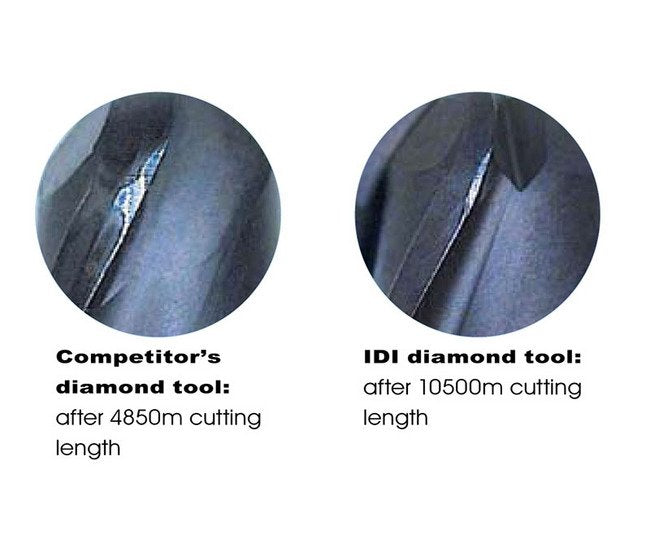

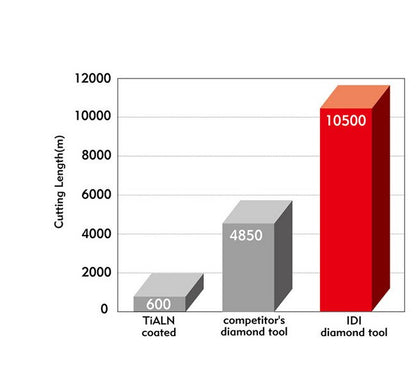

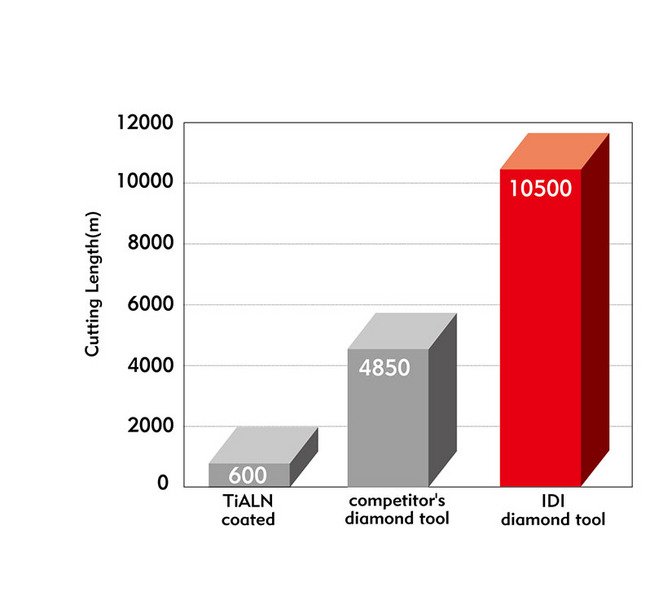

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

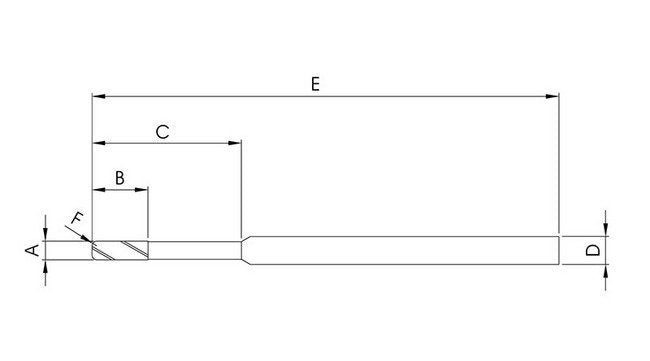

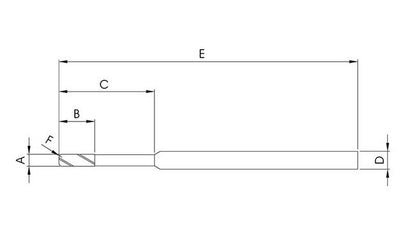

Specifications Corner Radius F
0.2 mm
Specifications Cutting Diameter A
1.5 mm
Specifications Flute Length B
3 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
3 mm
