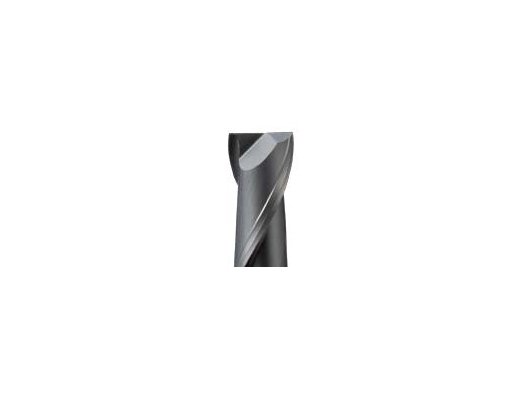

IDI Diamond Coated 2-Flute Square End Mill, 0.4mm

Name: IDI Diamond Coated 2-Flute Square End Mill, 0.4mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-f59ca7
Price: 79.99 USD
Availability: OutOfStock

SKU:DIA-f59ca7

Unmatched cutting performance and durability for graphite milling and composite material machining. Superior diamond coating for extended lifespan.

$79.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

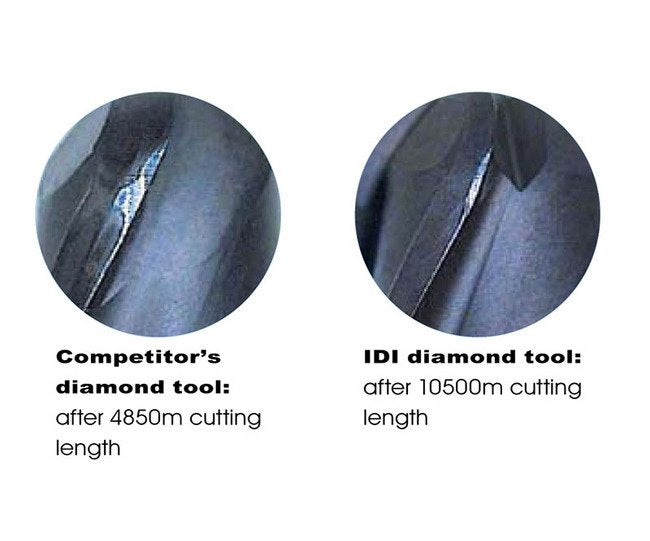

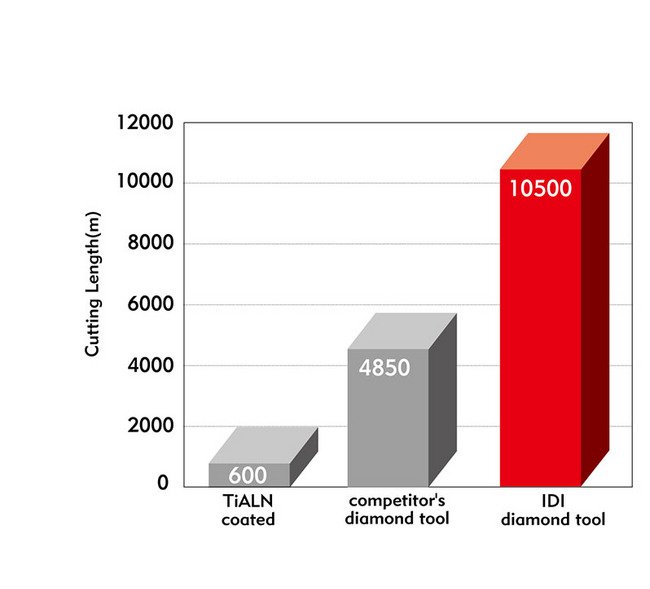

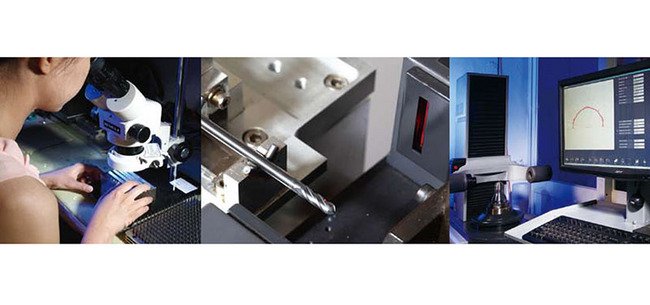

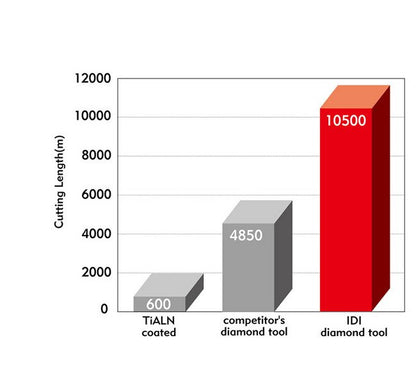

The IDI Diamond Coated 2-Flute Square End Mill offers unparalleled cutting performance and exceptional tool longevity. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill's lifespan exceeds uncoated tools by 12-20 times. Each tool undergoes meticulous inspection using high-precision equipment such as a Zoller Measuring Machine and Mitutoyo Laser Scan Meter, ensuring impeccable quality. Ideal for graphite milling in the semiconductor and die industries, as well as machining composite materials like CFRP and ceramics, this end mill delivers precise results and longevity.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

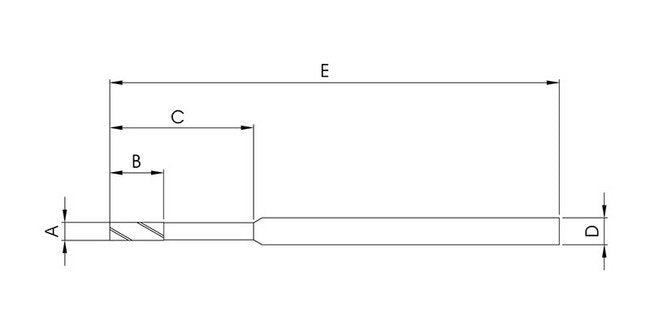

Specifications Cutting Diameter A

0.4 mm

Specifications Flute Length B

1 mm

Specifications Number Of Flute

Specifications Overall Length E

40 mm

Specifications Reach C

2 mm

Specifications Shank Diameter D

3 mm
