IDI Diamond Coated 2-Flute Square End Mill - 0.4mm
IDI Diamond Coated 2-Flute Square End Mill - 0.4mm
SKU:DIA-d82da5
Maximize cutting performance with our diamond-coated 2-flute end mill - perfect for graphite, composites, and ceramics.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Square End Mill - 0.4mm
$29.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Square End Mill - 0.4mm
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

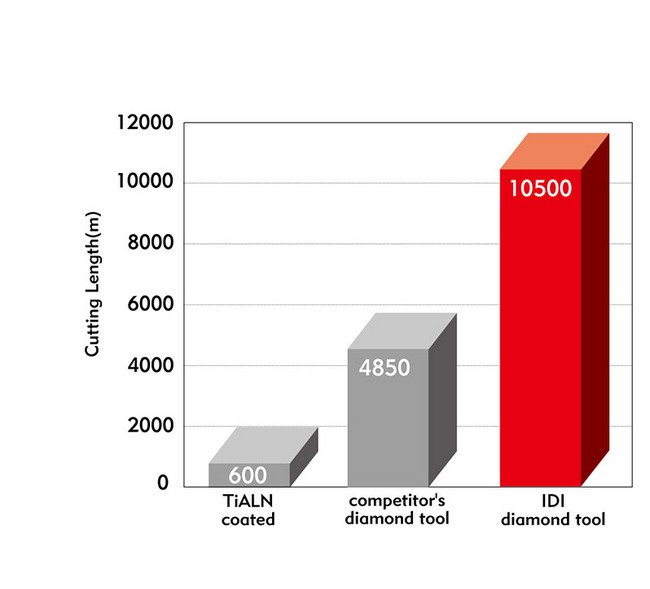

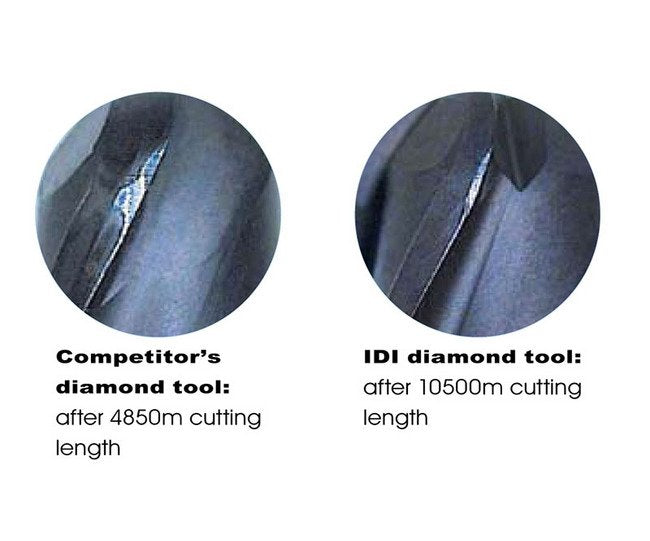

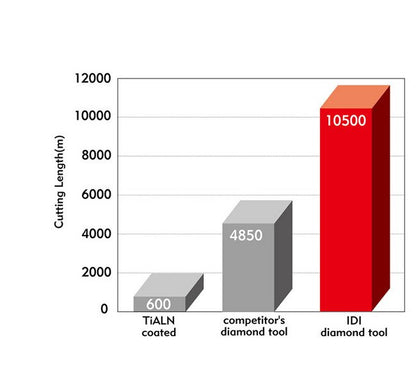

Experience top cutting performance and extended tool life with this diamond-coated end mill. Specially sintered substrate, high-performance geometry, and precise diamond coating provide longevity surpassing uncoated tools by 12-20 times. Rigorous quality checks ensure perfection in every tool for optimal performance. Ideal for graphite, composite materials, and ceramics milling applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.
Specifications Cutting Diameter A
0.4 mm
Specifications Flute Length B
1 mm
Specifications Number Of Flute
2
Specifications Overall Length E
40 mm
Specifications Reach C
1 mm
Specifications Shank Diameter D
3 mm
