IDI Diamond Coated 2-Flute Square End Mill 1.5mm
IDI Diamond Coated 2-Flute Square End Mill 1.5mm
SKU:DIA-1d48a1
Maximize cutting efficiency with IDI Diamond Coated 2-Flute Square End Mill - superior performance, extended tool life, and precision engineering.
Regular price
$39.99
Regular price
Sale price
$39.99
Unit price
per
Initiate Order
IDI Diamond Coated 2-Flute Square End Mill 1.5mm
$39.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 2-Flute Square End Mill 1.5mm
$39.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

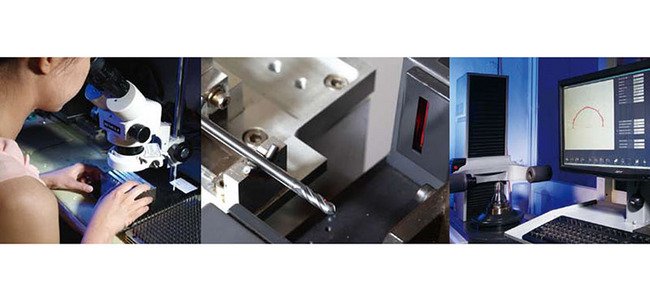

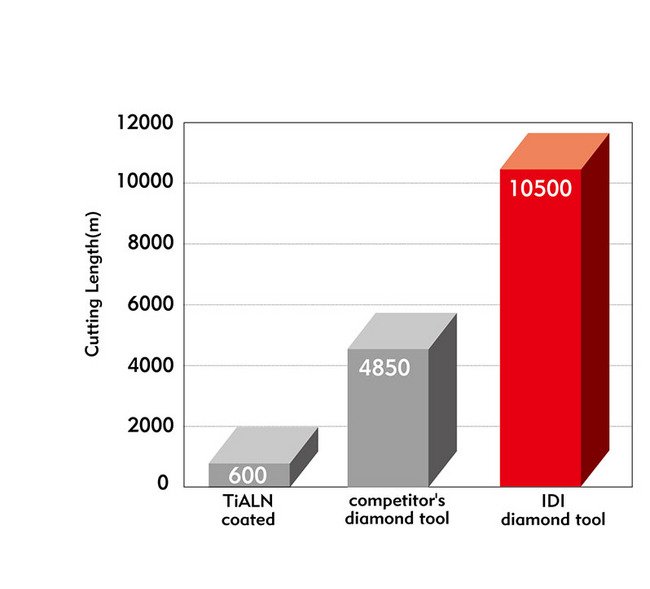

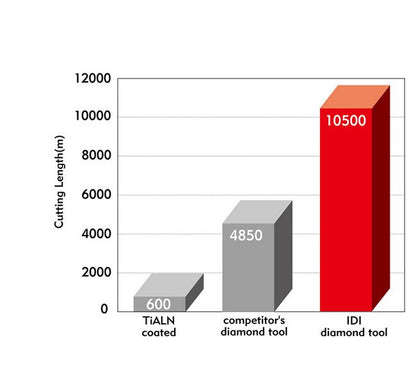

Upgrade your machining capabilities with the IDI Diamond Coated 2-Flute Square End Mill, designed for exceptional cutting performance and extended tool life. Featuring a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill exceeds the durability of uncoated tools by 12-20 times. Precision-controlled with Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes thorough microscopic inspection to ensure perfection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.
Specifications Cutting Diameter A
1.5 mm
Specifications Flute Length B
3 mm
Specifications Number Of Flute
2
Specifications Overall Length E
50 mm
Specifications Reach C
20 mm
Specifications Shank Diameter D
3 mm
