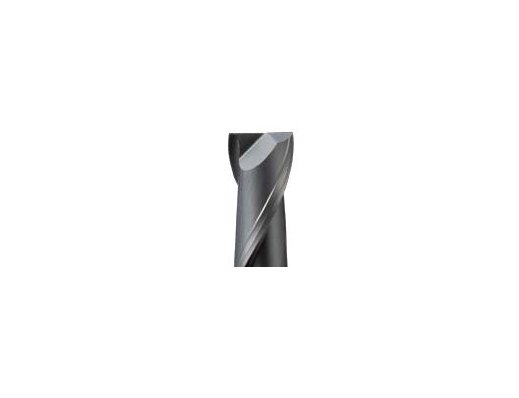

IDI Diamond Coated 2-Flute Square End Mill

Name: IDI Diamond Coated 2-Flute Square End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-be5609
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-be5609

Maximize tool longevity and cutting precision with our IDI Diamond Coated End Mill.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

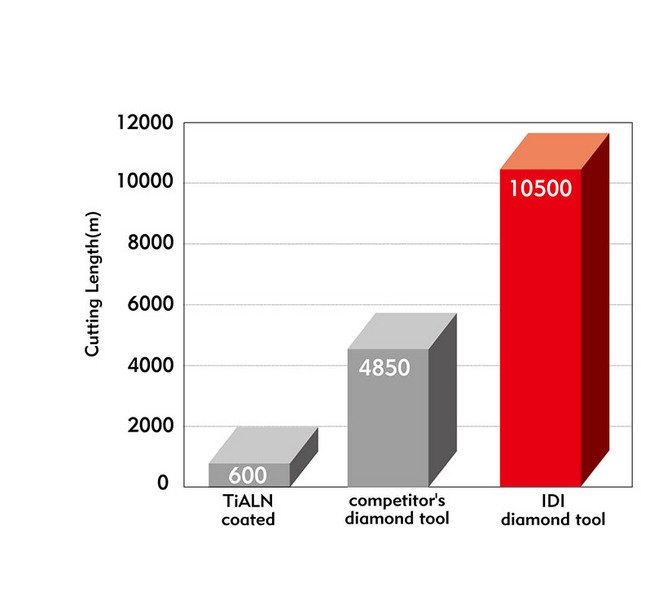

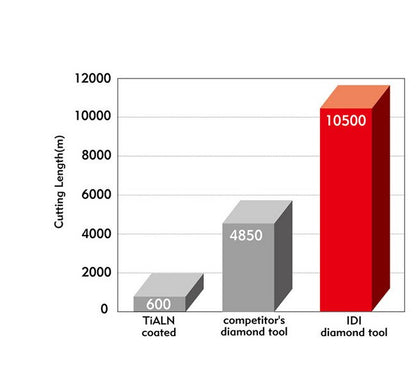

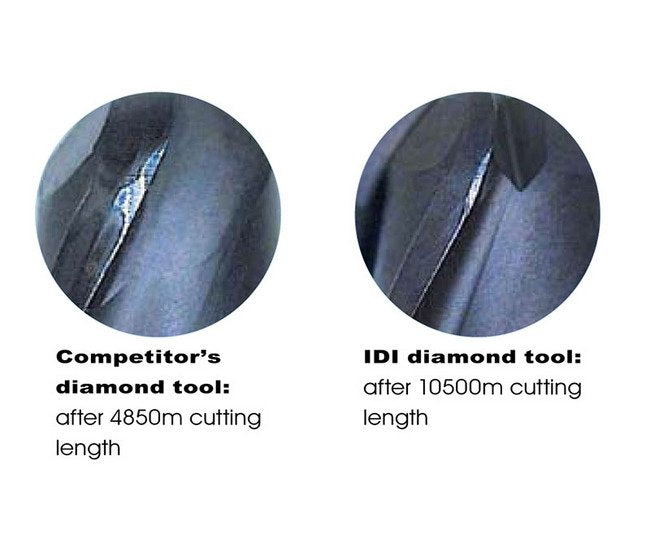

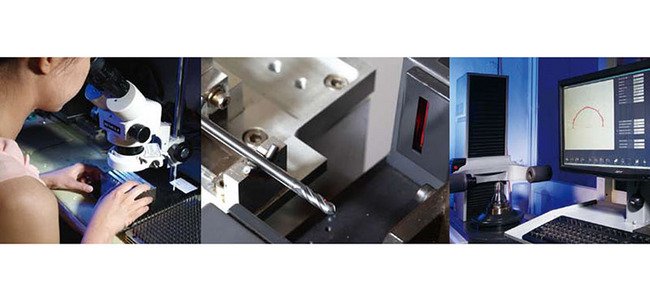

Experience unparalleled cutting performance with our IDI diamond coated 2-flute square end mill. Crafted with a specially sintered substrate, high-performance tool geometry, and exceptional diamond coating, this tool offers extended tool life, surpassing uncoated options by 12-20 times. Each tool undergoes rigorous inspection using advanced equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter to ensure precision and perfection. Ideal for graphite milling in the semiconductor and die mold industries, as well as for composite materials like CFRP and ceramics.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

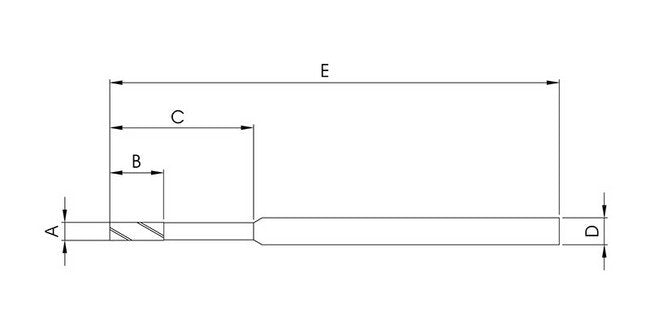

Specifications Cutting Diameter A

1 mm

Specifications Flute Length B

2 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

25 mm

Specifications Shank Diameter D

3 mm

IDI Diamond Coated 2-Flute Square End Mill
