Achieve top cutting performance and exceptional tool life with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Specially sintered substrate, high-performance tool geometry, and superior diamond coating ensure longevity up to 20 times that of uncoated tools. Each tool undergoes rigorous inspection using Zoller Measuring Machine and Mitutoyo Laser Scan Meter for precision. Ideal for graphite milling in semiconductor and die mold industries, as well as composite and ceramic machining applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

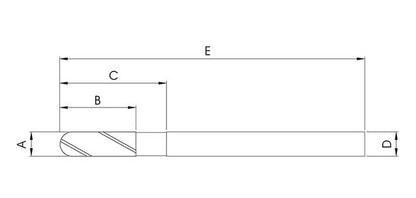

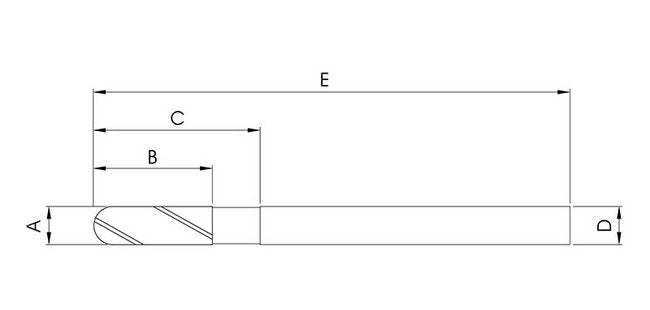

Specifications Cutting Diameter A
10 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
10 mm
