IDI Diamond Coated 4-Flute Ball Nose End Mill
IDI Diamond Coated 4-Flute Ball Nose End Mill
SKU:DIA-150175
Achieve exceptional cutting performance and durability with the IDI Diamond Coated End Mill for graphite, composites, and ceramics.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Ball Nose End Mill
$59.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Ball Nose End Mill
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill surpasses uncoated tools by lasting 12-20 times longer. Ideal for graphite milling in the semiconductor and die mold industries, as well as working with composite materials like CFRP and ceramics. Rigorously tested with precision measuring equipment, ensuring perfection for every tool received.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

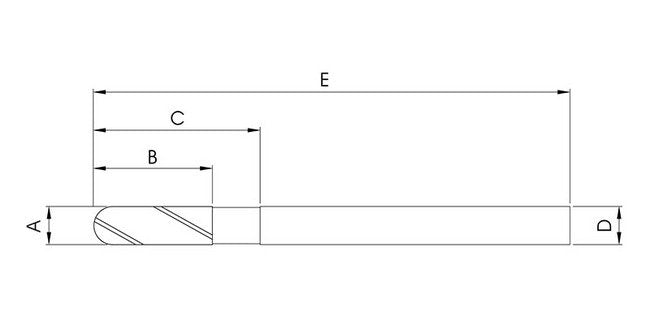

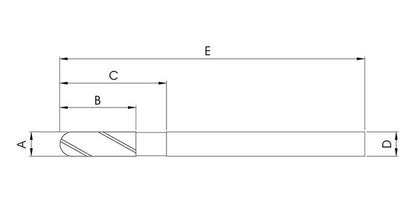

Specifications Cutting Diameter A
12 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
12 mm
