IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

DIA-a2f603

Experience unparalleled durability with IDI Diamond Coated 4-Flute End Mill - perfect for graphite milling & composite materials. Superior quality & performance!

$49.99
$49.99
Sale

Initiate Order

IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

$49.99

Quantity: 1

Claim Your Seller Account

IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Unlock unrivaled cutting performance and durability with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Crafted with a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill delivers exceptional tool life exceeding 12-20 times that of uncoated tools. Precision engineered using state-of-the-art equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection ensuring unmatched quality and flawless performance. Ideal for graphite milling, composite materials like CFRP, ceramics, and more, this end mill guarantees precision and longevity, making it a top choice for demanding applications.

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

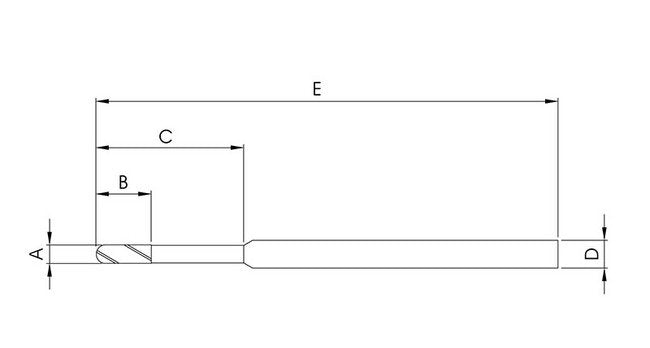

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
16 mm
Specifications Shank Diameter D
3 mm
