IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm
IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm
SKU:DIA-131509
Achieve superior cutting performance with IDI's Diamond Coated 4-Flute Ball Nose End Mill - 2mm, perfect for graphite milling and composite materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IDI Diamond Coated 4-Flute Ball Nose End Mill offers unparalleled cutting performance and exceptional durability, lasting 12-20 times longer than uncoated tools. Precision-engineered with a sintered substrate, advanced tool geometry, and superior diamond coating, this end mill undergoes rigorous quality control using Zoller Measuring and Mitutoyo Laser Scan equipment. Ideal for graphite milling in semiconductor and die industries, as well as composite materials like CFRP and ceramics, this tool ensures high efficiency and consistent results. Maximize tool life and precision with the IDI Diamond Coated End Mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

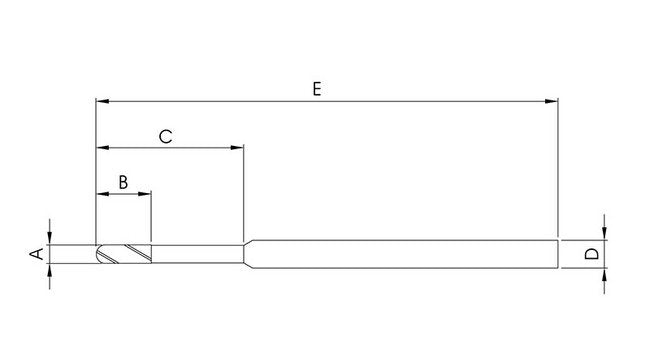

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
10 mm
Specifications Shank Diameter D
3 mm
