IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm

Name: IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-eedadf
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-eedadf

Enhanced tool life and cutting efficiency with IDI Diamond Coated 4-Flute Ball Nose End Mill - 2mm.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience unparalleled cutting performance and exceptional tool longevity with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Crafted with a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill surpasses uncoated tools by lasting 12-20 times longer. Utilizing precision equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter for quality control, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die/mold industries, as well as machining composite materials like CFRP and ceramics, this end mill guarantees optimal results even in demanding applications.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

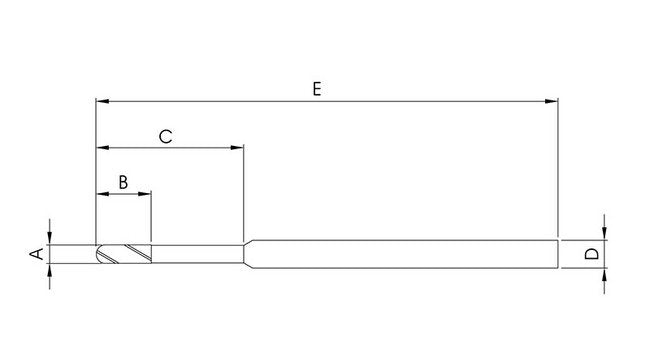

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

3 mm
