IDI Diamond Coated 4-Flute Ball Nose End Mill - 4mm

Name: IDI Diamond Coated 4-Flute Ball Nose End Mill - 4mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-cad2cf
Price: 59.99 USD
Availability: OutOfStock

SKU:DIA-cad2cf

Maximize efficiency with the IDI Diamond Coated 4-Flute Ball Nose End Mill - top cutting performance and exceptional tool life for precision machining applications.

$59.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Enhance your machining efficiency with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Featuring top cutting performance and an exceptional tool life exceeding 12-20 times that of uncoated tools, this end mill is designed with a specially sintered substrate, high-performance geometry, and a premium diamond coating. Each tool undergoes meticulous quality control with Zoller Measuring Machine and Mitutoyo Laser Scan Meter, ensuring precision and reliability. Ideal for graphite, composite materials, and ceramics machining in various industries. Maximize your productivity with this high-quality, long-lasting tool.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

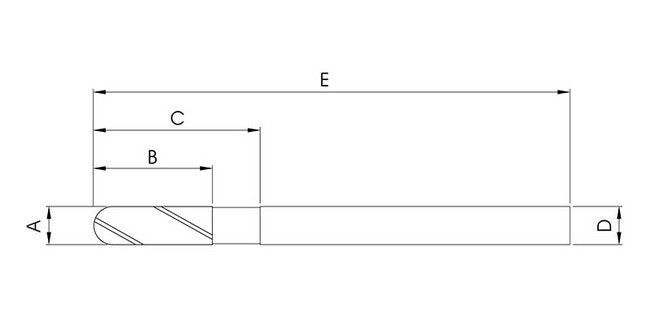

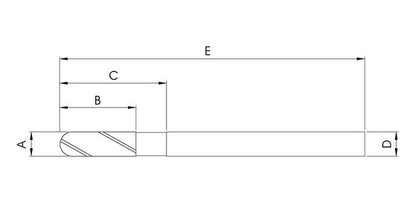

Specifications Cutting Diameter A

4 mm

Specifications Flute Length B

15 mm

Specifications Number Of Flute

Specifications Overall Length E

75 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

4 mm

IDI Diamond Coated 4-Flute Ball Nose End Mill - 4mm
