IDI Diamond Coated 4-Flute Ball Nose End Mill - 6mm
IDI Diamond Coated 4-Flute Ball Nose End Mill - 6mm
SKU:DIA-8cc31c
Achieve precision and longevity with IDI Diamond Coated 4-Flute Ball Nose End Mill. Perfect for graphite milling & composite materials.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Ball Nose End Mill - 6mm
$59.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Ball Nose End Mill - 6mm
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your machining operations with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Engineered for superior cutting performance and unparalleled tool lifespan, this end mill boasts a specially sintered substrate, high-performance tool geometry, and an exceptional diamond coating. Ideal for graphite milling in the semiconductor and die mold industries, as well as composite materials like CFRP and ceramics, this tool offers precise control and unmatched durability, with Zoller Measuring Machine and Mitutoyo Laser Scan Meter verification ensuring perfection in every piece.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

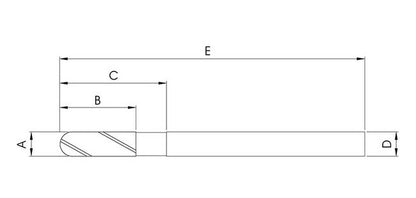

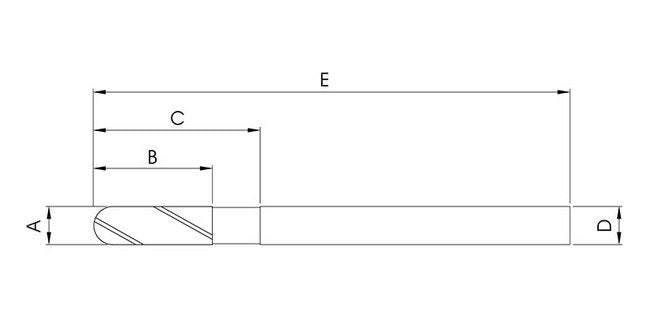

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
Specifications Type
Stub Flute
