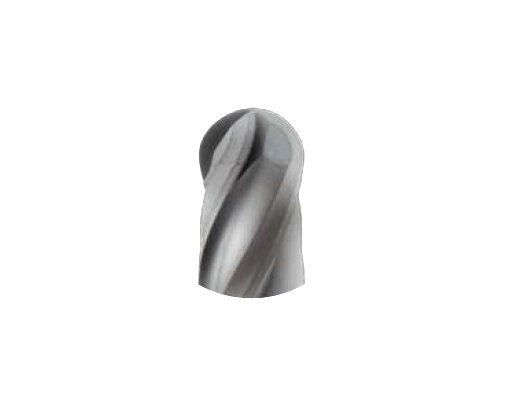

IDI Diamond Coated 4-Flute Ball Nose End Mill 6mm
IDI Diamond Coated 4-Flute Ball Nose End Mill 6mm
SKU:DIA-f0e7c2
Achieve superior cutting precision with IDI Diamond Coated 4-Flute Ball Nose End Mill. Exceptional performance in graphite, composites, and ceramics.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Ball Nose End Mill 6mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Ball Nose End Mill 6mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

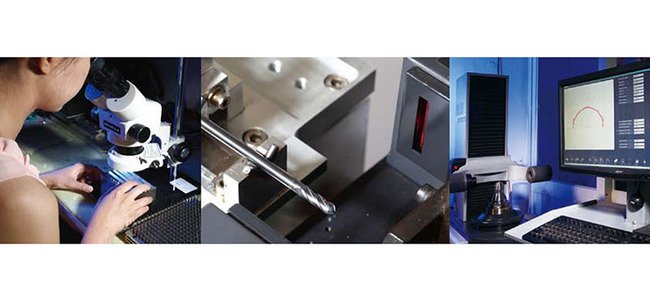

Upgrade your machining precision with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Engineered for top cutting performance and extended tool lifespan, this end mill features a sintered substrate, advanced tool geometry, and a premium diamond coating. Utilizing cutting-edge equipment for dimensional control, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite, composite materials, and ceramics, this end mill promises exceptional results in diverse applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

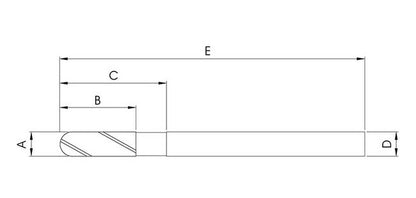

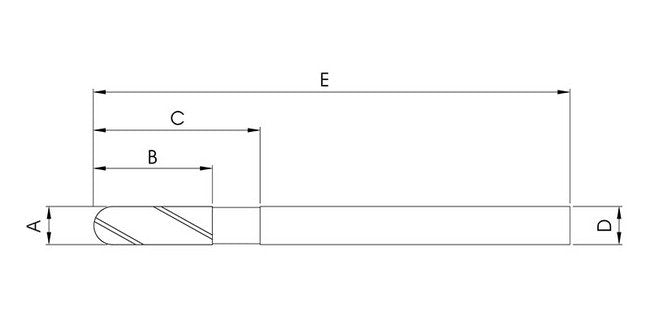

Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
