Experience top cutting performance and exceptional tool longevity with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this tool exceeds the lifespan of uncoated options by 12 to 20 times. Utilizing precise equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter ensures impeccable tool geometry and quality control. Ideal for applications in graphite milling, composite materials, and ceramics, this end mill delivers unparalleled results in various industries.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

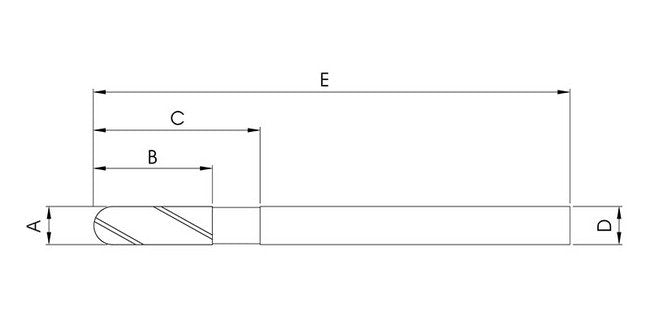

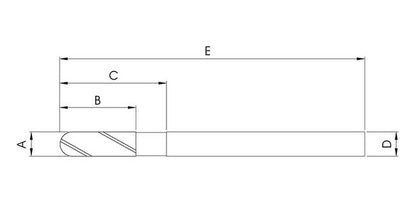

Specifications Cutting Diameter A
8 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
8 mm
