IDI Diamond Coated 4-Flute Ball Nose End Mill - 8mm

Name: IDI Diamond Coated 4-Flute Ball Nose End Mill - 8mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-8511db
Price: 89.99 USD
Availability: OutOfStock

SKU:DIA-8511db

Enhance efficiency with IDI Diamond Coated 4-Flute Ball Nose End Mill - 8mm. Unrivaled performance and longevity for graphite, composites, and ceramics.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience superior cutting performance and exceptional tool longevity with the IDI Diamond Coated 4-Flute Ball Nose End Mill. Engineered with a specially sintered substrate, high-performance tool geometry, and premium diamond coating, this end mill surpasses uncoated tools with a lifespan exceeding 12-20 times. Rigorously inspected using Zoller Measuring Machine and Mitutoyo Laser Scan Meter, ensuring precise tool geometry and impeccable quality. Ideal for graphite milling in semiconductor and die mold industries, machining composite materials like CFRP and ceramics. Enhance your productivity and efficiency with this industry-leading end mill.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

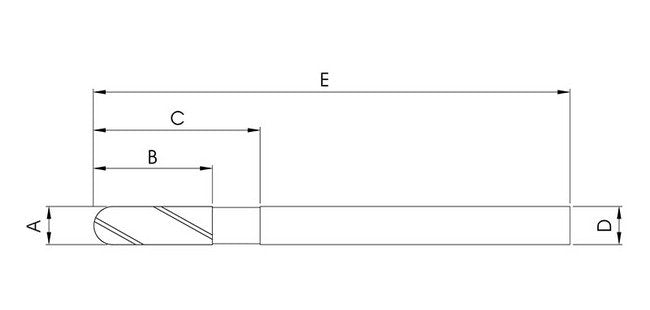

Specifications Cutting Diameter A

8 mm

Specifications Flute Length B

25 mm

Specifications Number Of Flute

Specifications Overall Length E

100 mm

Specifications Reach C

35 mm

Specifications Shank Diameter D

8 mm
