IDI Diamond Coated 4-Flute Corner Radius End Mill - 10mm
IDI Diamond Coated 4-Flute Corner Radius End Mill - 10mm
SKU:DIA-61e26f
Unmatched cutting performance with IDI Diamond Coated 4-Flute End Mill - 10mm. Ideal for graphite milling & composite materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill - 10mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill - 10mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance and exceptional durability with the IDI Diamond Coated 4-Flute Corner Radius End Mill. With a specially sintered substrate, advanced tool geometry, and superior diamond coating, this end mill boasts a lifespan 12-20 times longer than uncoated tools. Precision-engineered using Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die & mold industries, as well as composite materials like CFRP and ceramics, this tool excels in green state machining. Maximize tool life and precision with this premium end mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

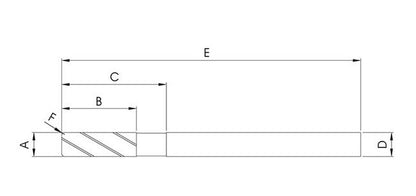

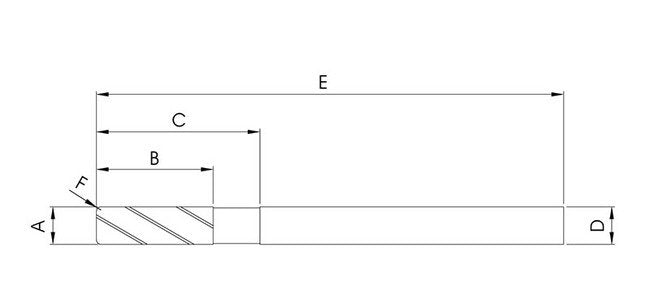

Specifications Corner Radius F
0.5/1 mm
Specifications Cutting Diameter A
10 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
10 mm
