IDI Diamond Coated 4-Flute Corner Radius End Mill - 2mm
IDI Diamond Coated 4-Flute Corner Radius End Mill - 2mm
SKU:DIA-1283d3
Achieve unparalleled cutting performance with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Exceptional longevity & precision for graphite, composites & ceramics.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill - 2mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill - 2mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The IDI Diamond Coated 4-Flute Corner Radius End Mill redefines cutting performance with its sintered substrate, high-performance geometry, and durable diamond coating. This end mill boasts a tool life 12-20 times longer than uncoated tools, ensuring exceptional longevity and precision. Utilizing advanced Zoller and Mitutoyo equipment for quality control, each tool undergoes meticulous inspection to guarantee perfection. Ideal for graphite, composite materials, and ceramics machining, this end mill delivers unrivaled efficiency and reliability.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

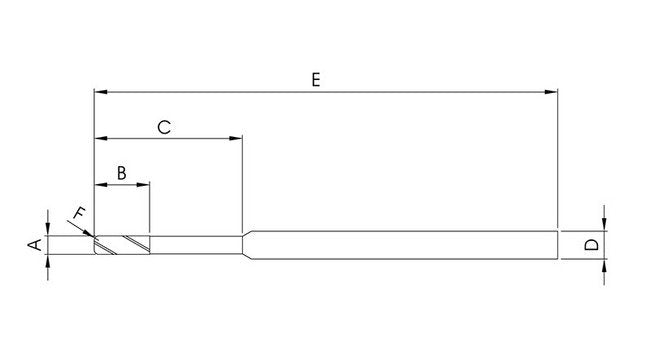

Specifications Corner Radius F
0.2/0.5 mm
Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
6 mm
Specifications Shank Diameter D
3 mm
