IDI Diamond Coated 4-Flute Corner Radius End Mill 3mm
IDI Diamond Coated 4-Flute Corner Radius End Mill 3mm
SKU:DIA-2864d2
Achieve precision and durability with IDI's Diamond Coated 4-Flute Corner Radius End Mill. Unmatched tool longevity for superior machining results.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill 3mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill 3mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your machining operations with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Engineered for top cutting performance and extended tool life, this end mill features a specially sintered substrate, high-performance tool geometry, and superior diamond coating. With a tool life exceeding 12 - 20 times that of uncoated tools, precision is guaranteed with Zoller Measuring Machine and Mitutoyo Laser Scan Meter inspections. Ideal for graphite, composite materials, and ceramics, this end mill delivers exceptional results in various applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

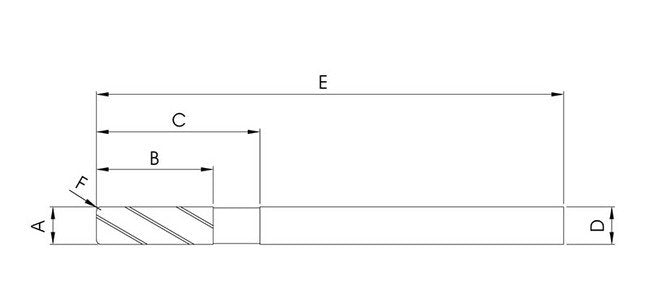

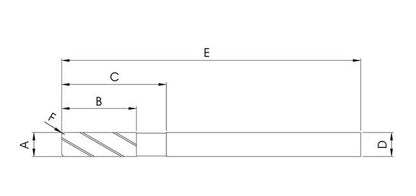

Specifications Corner Radius F
0.2/0.5 mm
Specifications Cutting Diameter A
3 mm
Specifications Flute Length B
9 mm
Specifications Number Of Flute
4
Specifications Overall Length E
75 mm
Specifications Reach C
15 mm
Specifications Shank Diameter D
3 mm
