IDI Diamond Coated 4-Flute Corner Radius End Mill

Name: IDI Diamond Coated 4-Flute Corner Radius End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-d1d65d
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-d1d65d

Achieve exceptional cutting performance and durability with IDI Diamond Coated 4-Flute End Mill. Perfect for graphite milling & composite materials.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience unparalleled cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Crafted with a specially sintered substrate, high-performance tool geometry, and premium diamond coating, this end mill outlasts uncoated tools by 12-20 times. Utilizing advanced measuring equipment for precision control, each tool undergoes meticulous inspection to ensure perfection. Ideal for graphite milling in the semiconductor and die & mold industries, as well as machining composite materials like CFRP and ceramics. Boost your productivity and efficiency with this top-quality end mill.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

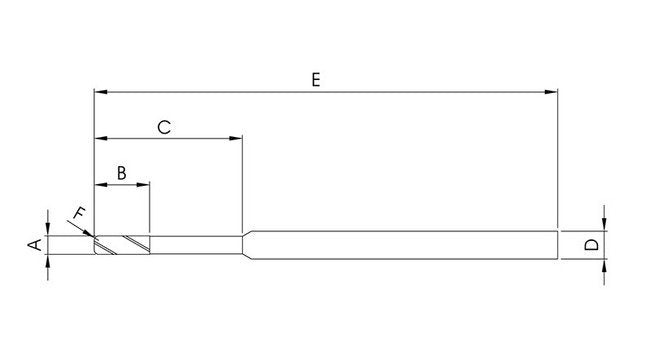

Specifications Corner Radius F

0.2/0.5 mm

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

10 mm

Specifications Shank Diameter D

3 mm
