IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm

Name: IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-2110a1
Price: 89.99 USD
Availability: OutOfStock

SKU:DIA-2110a1

Experience unmatched cutting performance with the IDI Diamond Coated 4-Flute Corner Radius End Mill - ideal for graphite and composite materials.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet the pinnacle of cutting performance with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Engineered with a specially sintered substrate, advanced tool geometry, and a durable diamond coating, this end mill boasts exceptional longevity, surpassing uncoated tools by 12-20 times. Rigorous quality control using Zoller Measuring and Mitutoyo Laser Scan equipment ensures precision. Ideal for graphite milling in the semiconductor and mold industries, as well as composite materials machining like CFRP and ceramics. Enhance your machining operations with unparalleled durability and precision.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

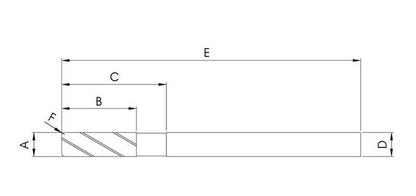

Specifications Corner Radius F

0.3/0.5 mm

Specifications Cutting Diameter A

6 mm

Specifications Flute Length B

20 mm

Specifications Number Of Flute

Specifications Overall Length E

150 mm

Specifications Reach C

25 mm

Specifications Shank Diameter D

6 mm

IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
