IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
SKU:DIA-fdcecd
Experience top-tier cutting performance and longevity with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Ideal for graphite milling and composite materials machining.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill - 6mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your machining precision and efficiency with the IDI Diamond Coated 4-Flute Corner Radius End Mill. This end mill offers exceptional cutting performance and longevity, with a specially sintered substrate and superior diamond coating. Utilizing advanced tool geometry and precise quality control measures, this tool provides 12-20 times the lifespan of uncoated tools. Ideal for graphite milling in the semiconductor and die mold industries, as well as machining composite materials like CFRP and ceramics. Maximize tool life and ensure perfect results with the IDI Diamond Coated End Mill.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

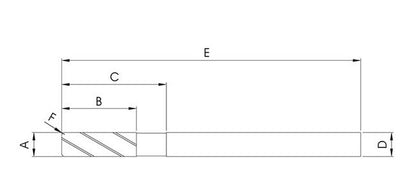

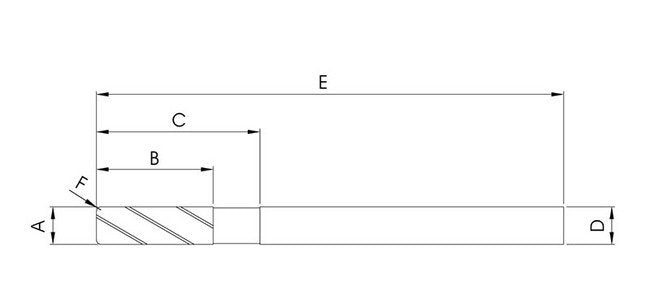

Specifications Corner Radius F
0.3/0.5 mm
Specifications Cutting Diameter A
6 mm
Specifications Flute Length B
20 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
6 mm
