IDI Diamond Coated 4-Flute Corner Radius End Mill
IDI Diamond Coated 4-Flute Corner Radius End Mill
SKU:DIA-dbd87c
Unparalleled cutting performance with IDI Diamond Coated End Mill. Exceptional longevity and precision for graphite, composites, and ceramics.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Engineered for longevity and precision, this end mill features a specially sintered substrate, high-performance tool geometry, and a durable diamond coating. With a tool life up to 12-20 times longer than uncoated tools, each piece undergoes meticulous inspection using advanced equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter. Ideal for graphite, composite materials, and ceramics machining, this end mill delivers exceptional results and reliability.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

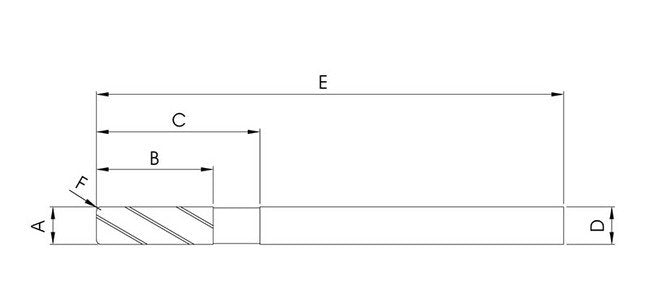

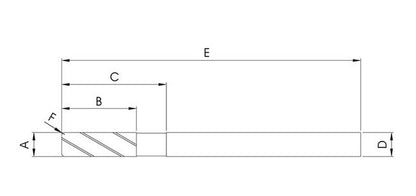

Specifications Corner Radius F
0.3/0.5 mm
Specifications Cutting Diameter A
4 mm
Specifications Flute Length B
15 mm
Specifications Number Of Flute
4
Specifications Overall Length E
100 mm
Specifications Reach C
20 mm
Specifications Shank Diameter D
4 mm
