IDI Diamond Coated 4-Flute Corner Radius End Mill
IDI Diamond Coated 4-Flute Corner Radius End Mill
SKU:DIA-287b24
Achieve unmatched cutting performance with IDI's Diamond Coated 4-Flute End Mill. Long-lasting and precise for optimal results.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Corner Radius End Mill
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Corner Radius End Mill
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience top cutting performance and exceptional tool life with the IDI Diamond Coated 4-Flute Corner Radius End Mill. Crafted with a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this tool surpasses uncoated alternatives by 12-20 times. Every tool undergoes rigorous inspection using precision equipment like the Zoller Measuring Machine and Mitutoyo Laser Scan Meter to ensure perfection.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

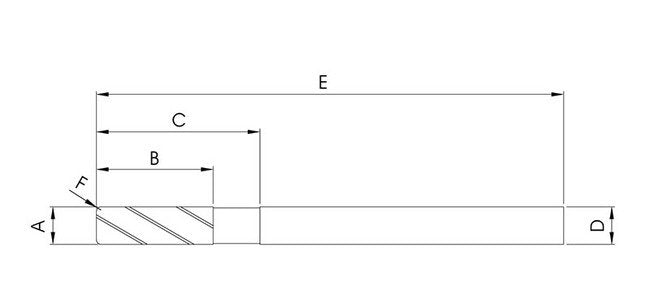

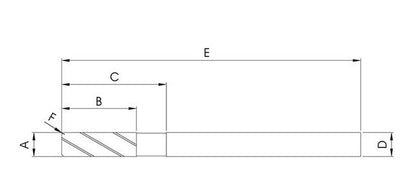

Specifications Corner Radius F
0.5/1 mm
Specifications Cutting Diameter A
12 mm
Specifications Flute Length B
25 mm
Specifications Number Of Flute
4
Specifications Overall Length E
150 mm
Specifications Reach C
35 mm
Specifications Shank Diameter D
12 mm
