IDI Diamond Coated 4-Flute Square End Mill

Name: IDI Diamond Coated 4-Flute Square End Mill
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-5334b1
Price: 49.99 USD
Availability: OutOfStock

SKU:DIA-5334b1

Achieve superior cutting performance and exceptional tool longevity with IDI Diamond Coated 4-Flute End Mill.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience unmatched cutting performance and extended tool life with the IDI Diamond Coated 4-Flute Square End Mill. Specially sintered substrate, high-performance tool geometry, and superior diamond coating ensure longevity up to 20 times that of uncoated tools. Precision measured with Zoller and Mitutoyo equipment, each tool undergoes rigorous inspection to guarantee perfection.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

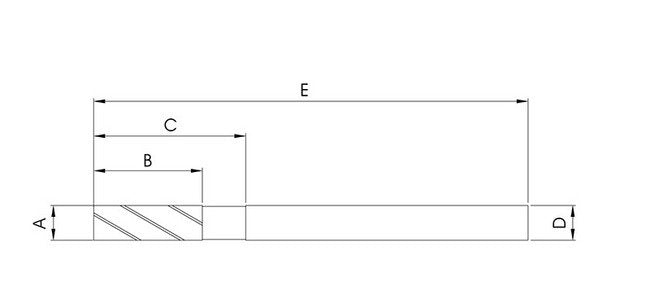

Specifications Cutting Diameter A

4 mm

Specifications Flute Length B

15 mm

Specifications Number Of Flute

Specifications Overall Length E

75 mm

Specifications Reach C

20 mm

Specifications Shank Diameter D

4 mm

IDI Diamond Coated 4-Flute Square End Mill
