IDI Diamond Coated 4-Flute Square End Mill, 2mm

Name: IDI Diamond Coated 4-Flute Square End Mill, 2mm
Brand: EDM Sales & Supplies, Inc.
SKU: DIA-68ff3b
Price: 89.99 USD
Availability: OutOfStock

SKU:DIA-68ff3b

Achieve top cutting performance with the IDI Diamond Coated 4-Flute Square End Mill, designed for lasting durability and precision in graphite milling and composite material machining.

$89.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Experience top cutting performance and unmatched tool longevity with the IDI Diamond Coated 4-Flute Square End Mill. Featuring a specially sintered substrate, high-performance tool geometry, and superior diamond coating, this end mill offers exceptional durability exceeding 12-20 times that of uncoated tools. Utilizing advanced precision equipment for quality control, each tool is meticulously inspected to ensure perfection. Ideal for graphite milling in the semiconductor and die & mold industries, as well as composite materials like CFRP and ceramics. Maximize efficiency and precision with this industrial-grade end mill.

Product Specifications

Applications

Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining

Cutting Condition 0

Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing

Note 0

Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

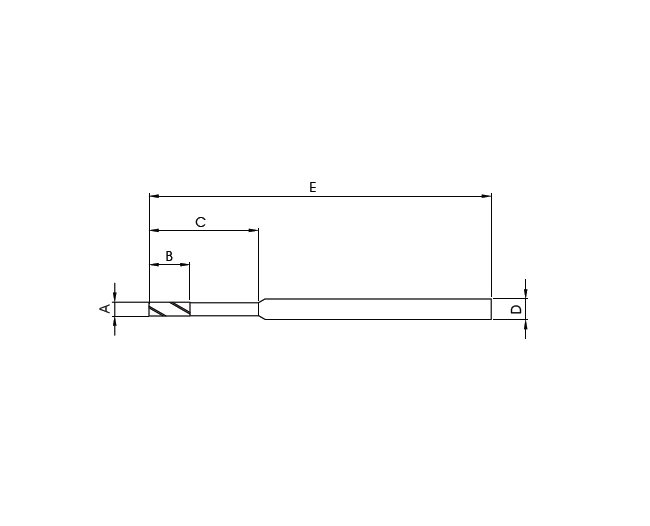

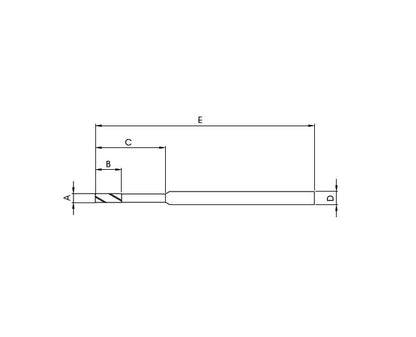

Specifications Cutting Diameter A

2 mm

Specifications Flute Length B

6 mm

Specifications Number Of Flute

Specifications Overall Length E

50 mm

Specifications Reach C

16 mm

Specifications Shank Diameter D

3 mm
