IDI Diamond Coated 4-Flute Square End Mill 2mm

IDI Diamond Coated 4-Flute Square End Mill 2mm

DIA-fd7e53

Maximize machining efficiency with the IDI Diamond Coated 4-Flute Square End Mill: top cutting performance, extended tool life, perfect for graphite and composite materials.

$49.99
$49.99
Sale

Initiate Order

IDI Diamond Coated 4-Flute Square End Mill 2mm

IDI Diamond Coated 4-Flute Square End Mill 2mm

$49.99

Quantity: 1

Claim Your Seller Account

IDI Diamond Coated 4-Flute Square End Mill 2mm

IDI Diamond Coated 4-Flute Square End Mill 2mm

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
Experience unparalleled cutting performance and durability with the IDI Diamond Coated 4-Flute Square End Mill. Engineered with a specially sintered substrate, high-performance geometry, and superior diamond coating, this tool surpasses uncoated ones by 12-20 times. Utilizing precise equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous quality control. Ideal for graphite milling in the semiconductor and die & mold industries, as well as machining composite materials like CFRP and ceramics. Revolutionize your machining process with extended tool life and impeccable precision.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

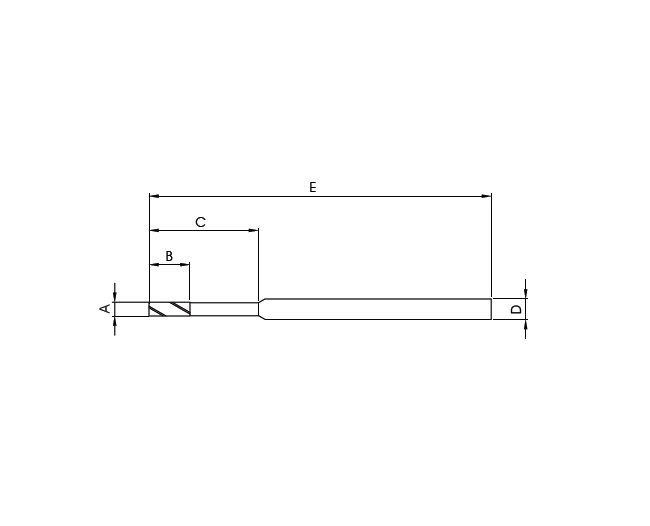

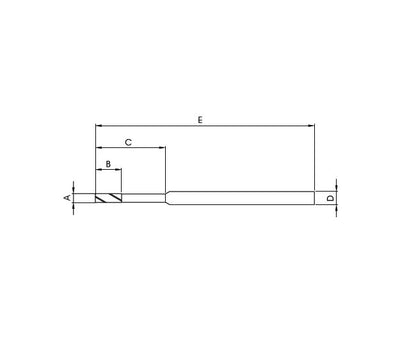

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
6 mm
Specifications Shank Diameter D
3 mm
