IDI Diamond Coated 4-Flute Square End Mill 2mm
IDI Diamond Coated 4-Flute Square End Mill 2mm
SKU:DIA-fd7e53
Maximize machining efficiency with the IDI Diamond Coated 4-Flute Square End Mill: top cutting performance, extended tool life, perfect for graphite and composite materials.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Square End Mill 2mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Square End Mill 2mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Experience unparalleled cutting performance and durability with the IDI Diamond Coated 4-Flute Square End Mill. Engineered with a specially sintered substrate, high-performance geometry, and superior diamond coating, this tool surpasses uncoated ones by 12-20 times. Utilizing precise equipment like Zoller Measuring Machine and Mitutoyo Laser Scan Meter, each tool undergoes meticulous quality control. Ideal for graphite milling in the semiconductor and die & mold industries, as well as machining composite materials like CFRP and ceramics. Revolutionize your machining process with extended tool life and impeccable precision.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

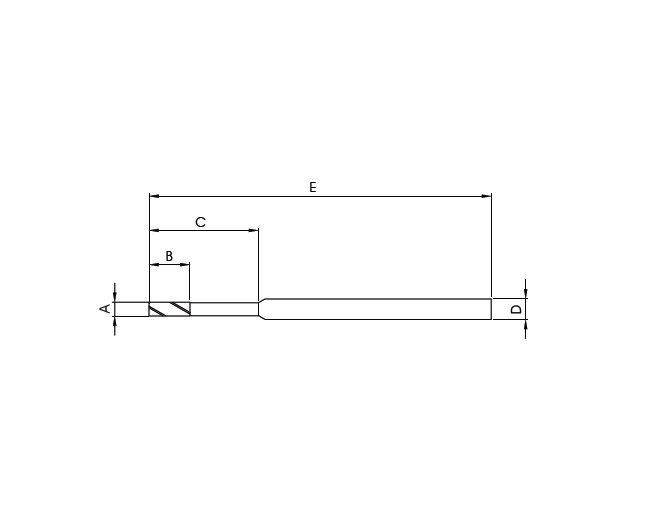

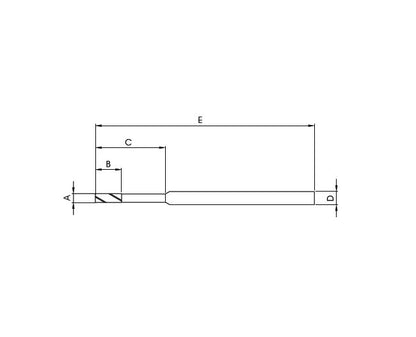

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
6 mm
Specifications Shank Diameter D
3 mm
