IDI Diamond Coated 4-Flute Square End Mill 2mm
IDI Diamond Coated 4-Flute Square End Mill 2mm
SKU:DIA-5f2501
Achieve precision and durability with the IDI Diamond Coated 4-Flute Square End Mill for graphite, composite materials, and ceramics.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
IDI Diamond Coated 4-Flute Square End Mill 2mm
$49.99
Quantity: 1
Claim Your Seller Account
IDI Diamond Coated 4-Flute Square End Mill 2mm
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Designed for high cutting performance and exceptional longevity, the IDI Diamond Coated 4-Flute Square End Mill features a sintered substrate, advanced tool geometry, and premium diamond coating. With a tool life exceeding 12 - 20 times that of uncoated tools, precision is guaranteed through rigorous quality control measures using Zoller and Mitutoyo equipment. Ideal for graphite, composite materials, and ceramics, this end mill ensures superior results in semiconductor, die and mold, and green state machining applications.
Product Specifications
Applications
Graphite milling:For semiconductor industry, die and mold industry…, etc.Composite materials:CFRP (carbon fiber reinforced plastics), Glass fiber plastics, PEEK, PBI…, etc.Ceramics in green state machining
Cutting Condition 0
Tool: R3 ball nose end millVc = 220 m/minPitch = 0.08 mmGraphite: POCO EDM200Application: Graphite electrode Z level finishing
Note 0
Tool life depends on machine tool, tool holder, graphite hardness and surface quality requirement…, etc. The above data may not fit all cases.

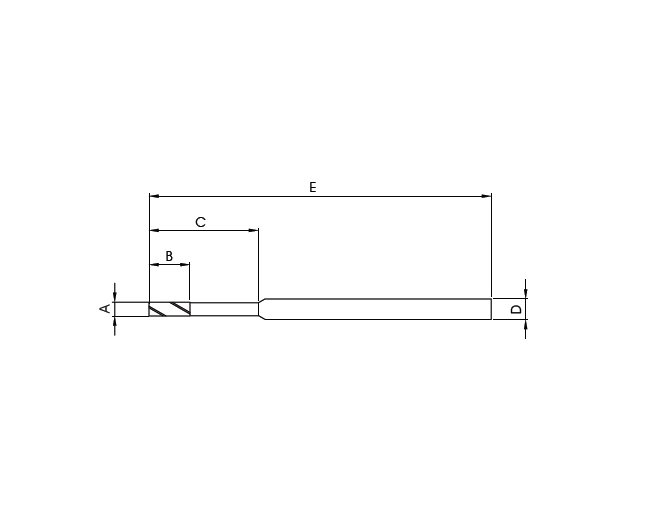

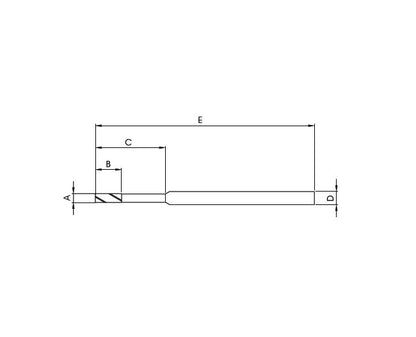

Specifications Cutting Diameter A
2 mm
Specifications Flute Length B
6 mm
Specifications Number Of Flute
4
Specifications Overall Length E
50 mm
Specifications Reach C
25 mm
Specifications Shank Diameter D
3 mm
